Power Liftgate Rod: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

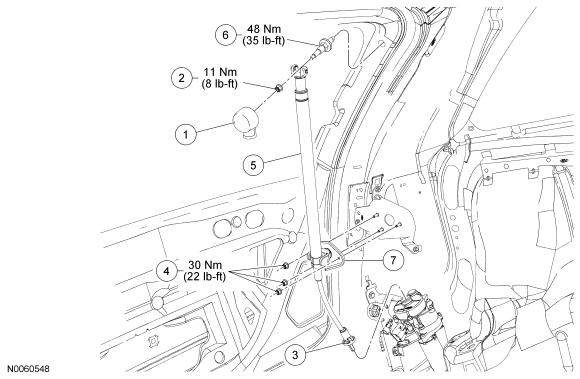

| Item | Part Number | Description |
|---|---|---|
| 1 | 410B00 | Power liftgate rod end cover |
| 2 | W520201 | Power liftgate rod-to-liftgate retaining nut |
| 3 | - | Power liftgate rod-to-motor retaining clip (part of the power liftgate rod assembly) |
| 4 | W52020 | Power liftgate rod-to-bracket nuts (3 required) |
| 5 | 404B45 | Power liftgate rod assembly |
| 6 | 404E48 | Power liftgate rod mounting stud |
| 7 | - | Power liftgate rod bracket (part of the power liftgate rod assembly) |
