Bumper - Exploded View, Rear

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

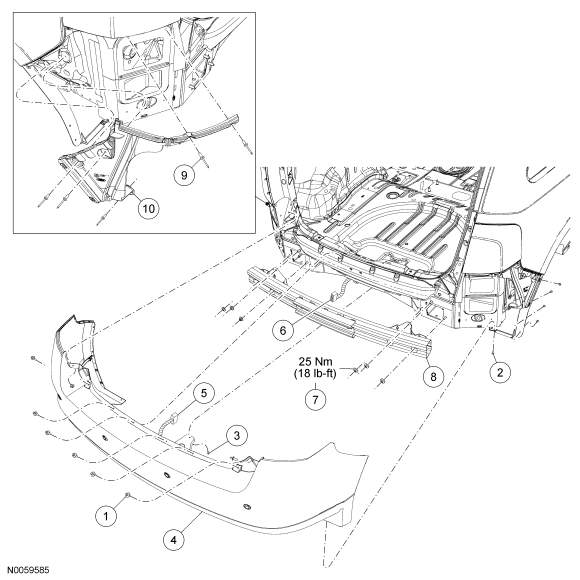

Fig 1: Exploded View Of Rear Bumper Without Trailer Hitch With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713202	Rear bumper cover scrivet (Edge) (8 required)
1	W713202	Rear bumper cover scrivet (MKX) (10 required)
2	W711656	Splash shield screw (10 required)
3	W711656	Rear bumper cover body brace screw
4	17K835	Rear bumper cover
5	-	Wiring harness assembly
6	-	Wiring harness assembly
7	N804620	Rear bumper mounting bolt (6 required)
8	17906	Rear bumper
9	W705376	Rear bumper cover mounting bracket rivet (5 required)
10	17D980	Rear bumper cover mounting bracket

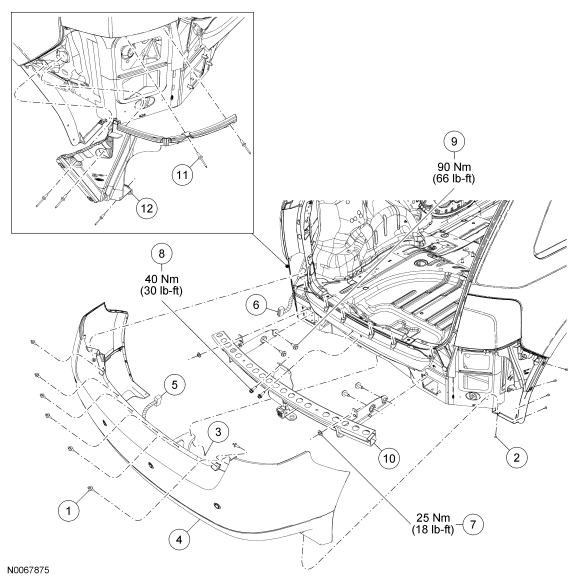

Fig 2: Exploded View Of Rear Bumper With Trailer Hitch With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713202	Rear bumper cover scrivet (Edge) (8 required)
1	W713202	Rear bumper cover scrivet (MKX) (10 required)
2	W711656	Splash shield screw (10 required)
3	W711656	Rear bumper cover body brace screw
4	17K835	Rear bumper cover
5	-	Wiring harness assembly
6	-	Wiring harness assembly
7	N804620	Rear bumper mounting nut (2 required)
8	W712171	Rear bumper mounting bolt (2 required)
9	W702256	Rear bumper mounting bolt (4 required)
10	17D826	Rear bumper
11	W705376	Rear bumper cover mounting bracket rivet (5 required)
12	17D980	Rear bumper cover mounting bracket

For additional information, refer to the appropriate procedures.
