Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

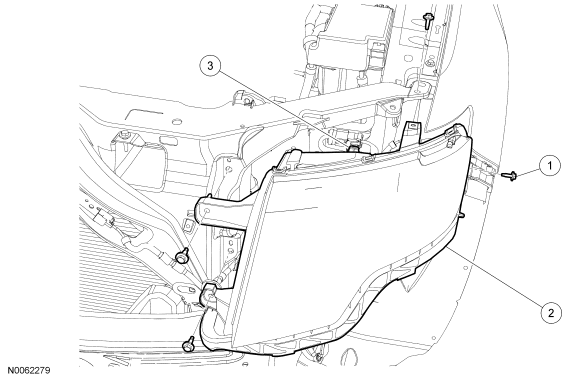

NOTE:
Edge shown, MKX similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W711676 |
Headlamp assembly bolts (4 required) |
| 2 |
13005/13006 |
Headlamp assembly (LH/RH) |
| 3 |
- |
Headlamp electrical connectors (part of 14290) |
