Headlamp Bulb: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

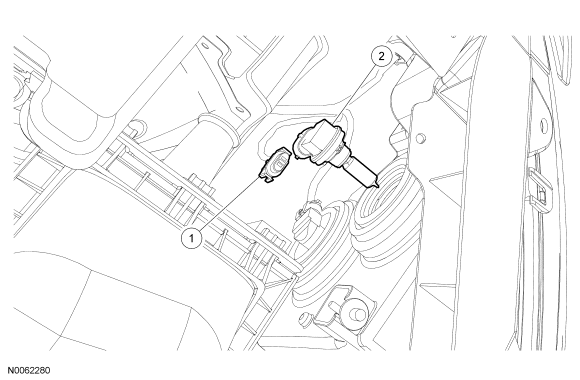

Fig 1: Exploded View Of Headlamp Bulb Edge Low Beam

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Headlamp bulb electrical connector (part of 14290)
2	13N021	Headlamp bulb

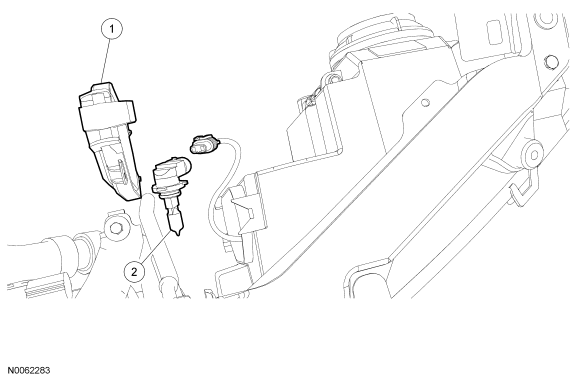

Fig 2: Exploded View Of Headlamp Bulb Edge High Beam

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Headlamp bulb electrical connector (part of 14290)
2	13N021	Headlamp bulb

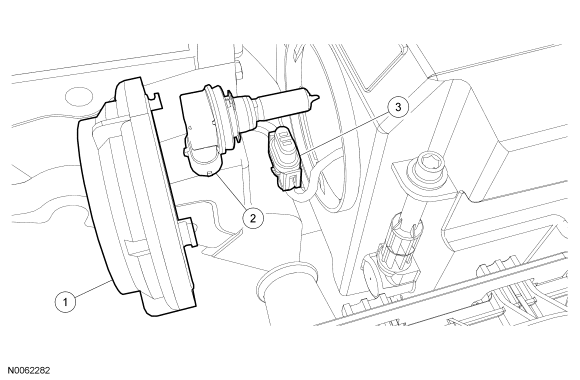

Fig 3: Exploded View Of Headlamp Bulb MKX Low Beam

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Headlamp bulb access cover (part of 13005/13006)
2	13N021	Headlamp bulb
3	-	Headlamp bulb electrical connector (part of 13005/13006)

NOTE: The air cleaner assembly is shown removed for clarity.

Fig 4: Exploded View Of Headlamp Bulb MKX High Beam

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Headlamp bulb access cover (part of 13005/13006)
2	13N021	Headlamp bulb
3	-	Headlamp bulb electrical connector (part of 13005/13006)
