Rear Lamp Assembly: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

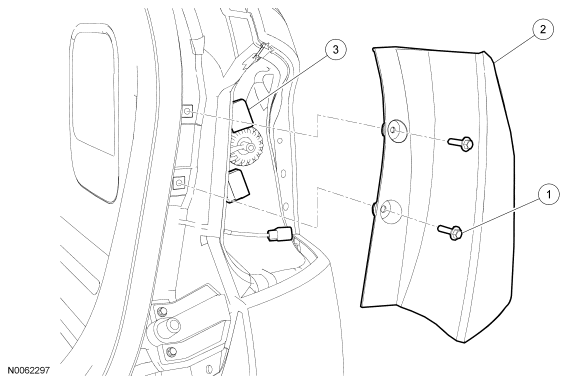

Edge shown, MKX similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Rear lamp assembly screws (2 required) |
| 2 |
13A505/13A504 |
Rear lamp assembly (LH/RH) |
| 3 |
- |
Rear lamp assembly electrical connectors (part of 14A005) |
