Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

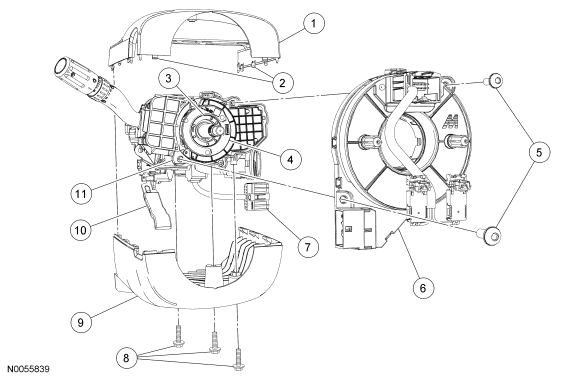

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530A | Upper steering column shroud |
| 2 | - | Upper steering column shroud tabs (2 required) (part of 3530) |
| 3 | 3F818 | Absolute steering angle sensor |
| 4 | - | Absolute steering angle sensor ring (part of 3F818) |
| 5 | - | Clockspring screws (2 required) (part of 13K359) |
| 6 | 14A644 | Clockspring |
| 7 | - | Clockspring electrical connector (part of 14401) |
| 8 | - | Lower steering column shroud screws (3 required) (part of 3530B) |
| 9 | 3530B | Lower steering column shroud |
| 10 | - | Steering column tilt lock/unlock handle |
| 11 | - | Multi-function switch housing |
