Seat Position Sensor
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Power seat shown, manual seat similar.

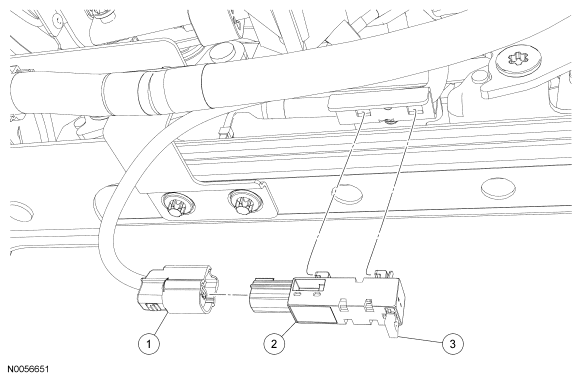

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat position sensor electrical connector (part of 14A699) |
| 2 | 14B416 | Seat position sensor |
| 3 | - | Seat position sensor retaining clip (part of 14B416) |
WARNING:
To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
NOTE:
The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE:
Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
All seats
- Raise the driver seat and then position it to the middle of the track.
- Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
- Remove the driver seat. For additional information, refer to SEATING .
- Disconnect the seat position sensor electrical connector.
- Detach the wire harness routing pin-type retainer from the seat position sensor bracket.

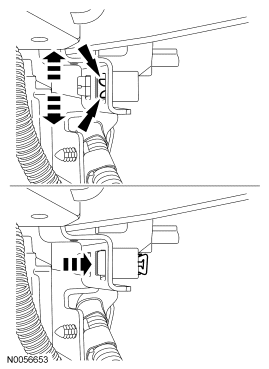

- Push apart then inward to release the seat position sensor locking clip.
- Slide the seat position sensor rearward to release the 2 hooks from the bracket. Then remove the seat position sensor.
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
Power seats
All seats
