Shock Absorber and Spring Assembly: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

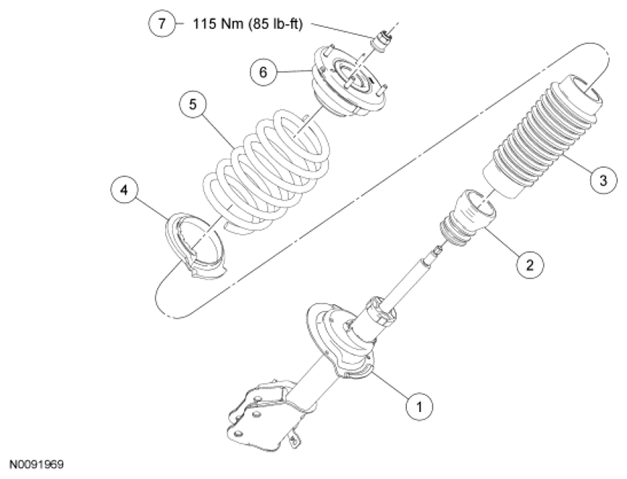

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
18K001 LH/18045 RH |
Shock absorber |
| 2 |
18198 |
Jounce bumper |
| 3 |
3K036 |
Dust boot |
| 4 |
5A307 |
Spring lower seat |
| 5 |
5310 |
Spring |
| 6 |
18183 |
Spring upper mount and seat |
| 7 |
W713968 |
Shock absorber rod nut |
