Lower Arm: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

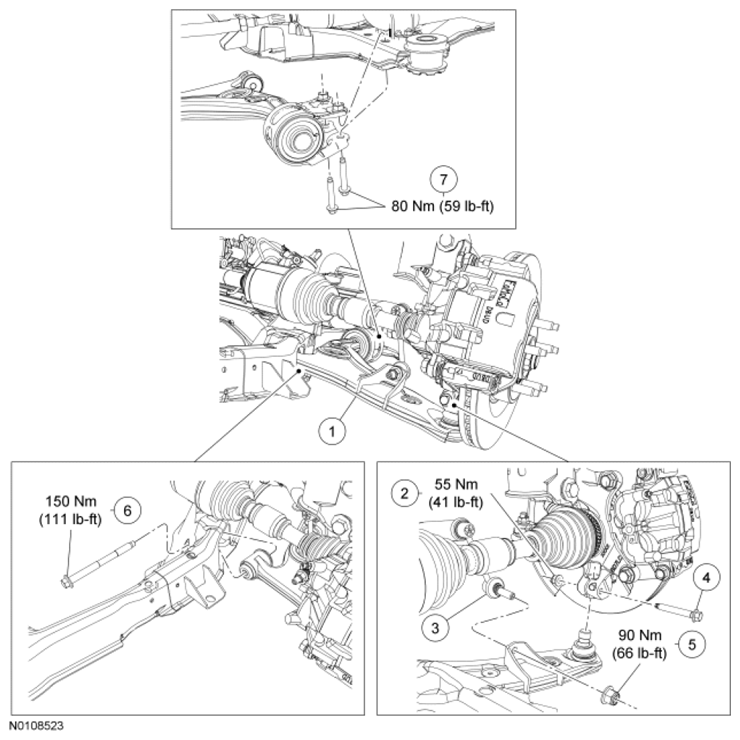

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3A423 RH/3A424 LH | Lower arm |
| 2 | W520213 | Lower ball joint nut |
| 3 | 3B438 | Stabilizer bar link |
| 4 | W714681 | Lower ball joint bolt |
| 5 | W520214 | Stabilizer bar link nut |
| 6 | W712734 | Lower arm-to-frame forward bolt |
| 7 | W712850 | Lower arm-to-frame rearward bolts (2 required) |
