Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

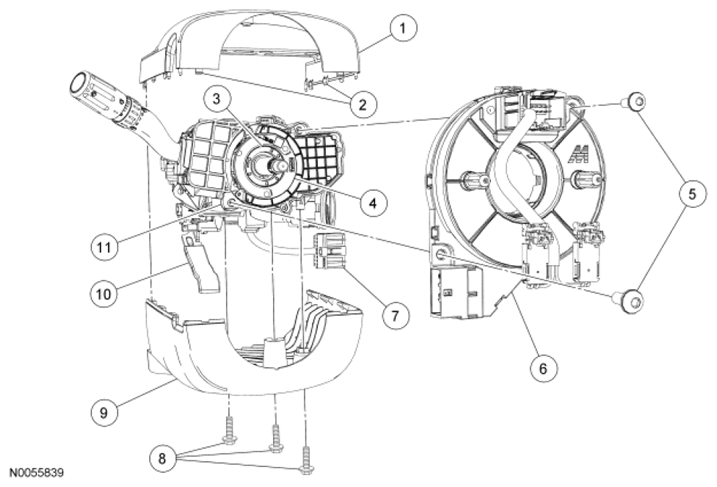

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530A | Upper steering column shroud |
| 2 | - | Upper steering column shroud tabs (part of 3530) (2 required) |
| 3 | 3F818 | Steering angle sensor (if equipped) |
| 4 | - | Steering angle sensor ring (if equipped) (part of 3F818) |
| 5 | - | Clockspring screws (part of 13K359) (2 required) |
| 6 | 14A664 | Clockspring |
| 7 | - | Clockspring electrical connector (part of 14401) |
| 8 | - | Lower steering column shroud screws (part of 3530B) (3 required) |
| 9 | 3530B | Lower steering column shroud |
| 10 | - | Steering column tilt lock/unlock handle |
| 11 | - | Multifunction switch housing |
