Rear Lamp Assembly - Liftgate: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

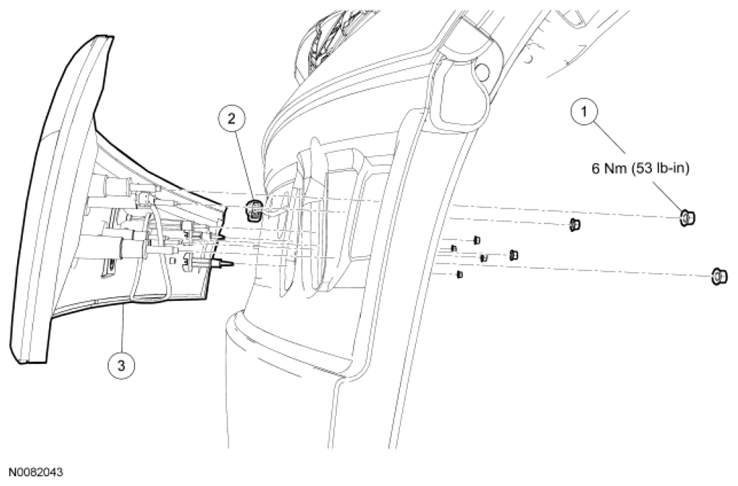

Fig 1: Rear Lamp Assembly -- Liftgate Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W704141	Liftgate lamp nuts (8 required)
2	-	Liftgate lamp electrical connector (part of 14A583)
3	13A565	Liftgate lamp
