Speaker - Instrument Panel: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

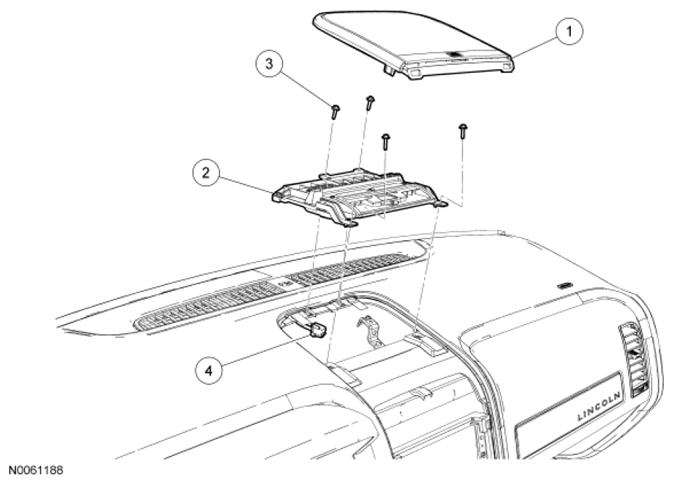

Fig 1: Identifying Instrument Panel Speaker With Cover, Screws And Electrical Connectors

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	78044A92	Instrument panel speaker cover
2	18808	Instrument panel speaker
3	W707628-S	Instrument panel speaker screws (4 required)
4	-	Instrument panel speaker electrical connector (part of 14401)
