Section 176 (Electronic Engine Control System)
›
Removal And Installation
›
Knock Sensor (KS)
›
Notes
Knock Sensor (KS): Notes
WARNING:
This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

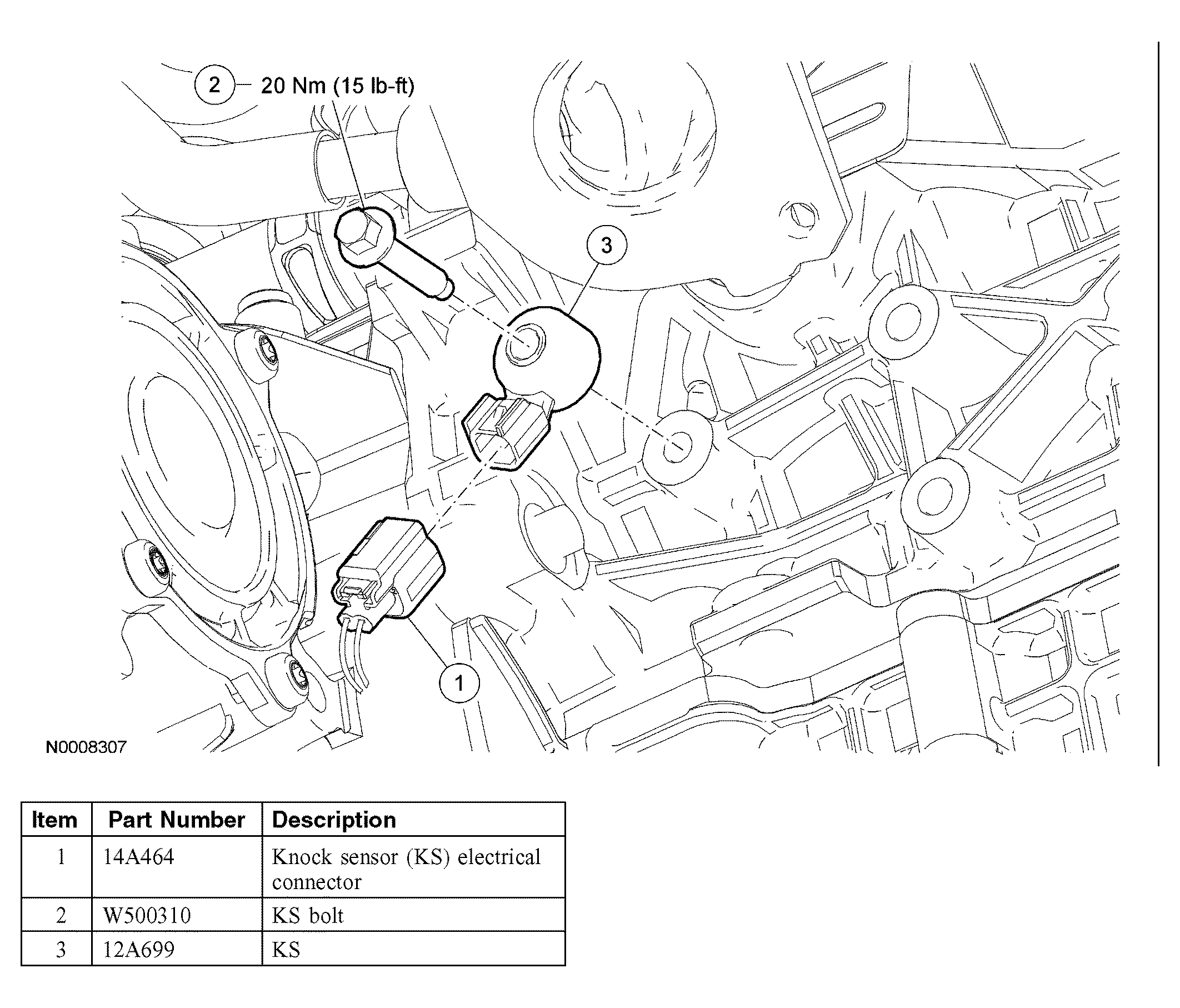

Fig 1: Removing/Installing Knock Sensor (KS)
Courtesy of FORD MOTOR CO.
