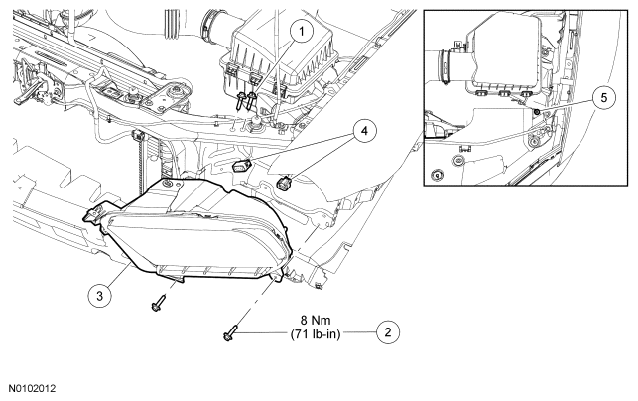

Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
7850980 |
Pin-type retainer |
| 2 |
W714923 |
Headlamp assembly bolts (3 required) |
| 3 |
13008 |
Headlamp assembly |
| 4 |
- |
Electrical connectors (part of 14290) |
| 5 |
- |
Headlamp adjustment screw |
