High Mounted Stoplamp: Notes
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

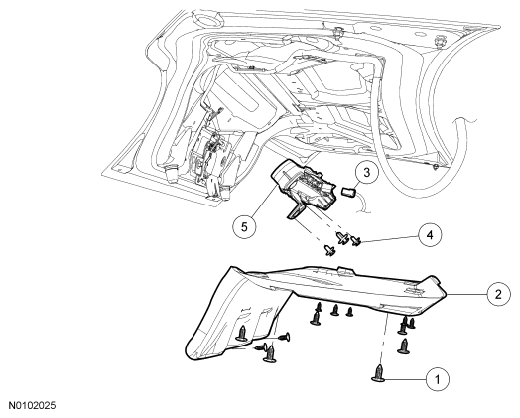

| Item |
Part Number |
Description |
| 1 |
- |
Pushpins (13 required) |
| 2 |
- |
Luggage compartment lid trim panel |
| 3 |
- |
High mounted stoplamp electrical connector (part of 14A005) |
| 4 |
- |
Pin-type retainers (part of 13A613) (3 required) |
| 5 |
13A613 |
High mounted stoplamp assembly |
