Rear Lamp Assembly: Notes

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

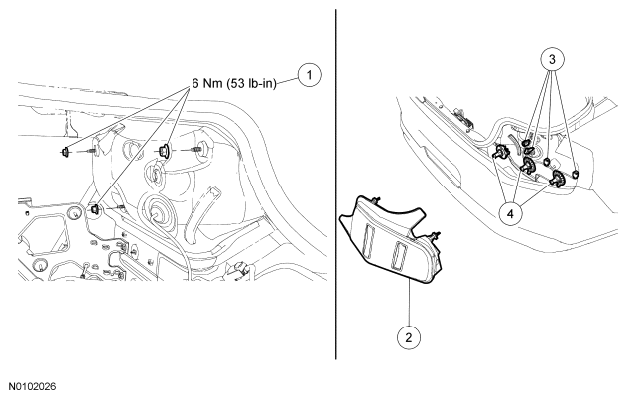

Fig 1: Rear Lamp Assembly Replacement Components With Torque Specifications
G06403859Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N621906 Rear lamp assembly nuts (3 required)
2 13405/13404 Rear lamp assembly (LH/RH)
3 - Rear lamp electrical connectors (part of 13405/13404)
4 13B765 LED lamps
