Crankshaft Position (CKP) Sensor
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After installing the Crankshaft Position (CKP) sensor, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

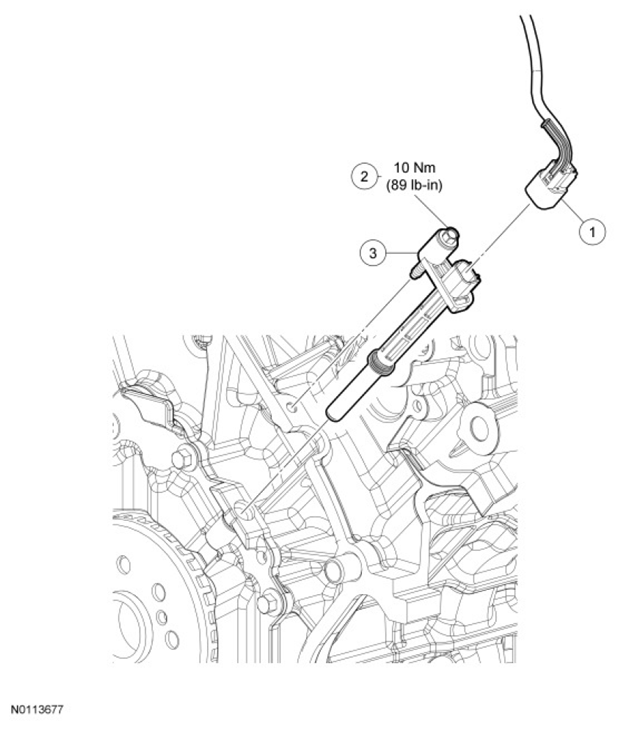

Fig 1: Crankshaft Position Sensor, Bolt And Electrical Connector With Torque Specifications (5.0L - 4V)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Crankshaft Position (CKP) sensor electrical connector (part of 12A581) |
| 2 | - | CKP sensor bolt (part of 6C315) |
| 3 | 6C315 | CKP sensor |
