Door Alignment

All adjustments

1. Remove the door latch striker.

   Horizontal and vertical adjustment

2. Loosen the front door hinge-to-front door bolts.

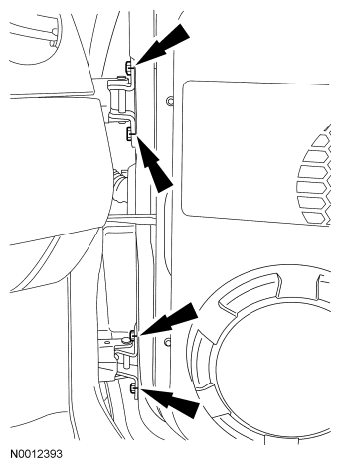

   Fig 1: Locating Front Door Hinge-To-Front Door Bolts

   Courtesy of FORD MOTOR CO.
3. Adjust the front door. For additional information, refer to BODY PANEL SYSTEM - BODY REPAIRS .
4. Tighten the front door hinge-to-front door bolts to 30 Nm (22 lb-ft).

   Fore and aft adjustment

5. Loosen the door hinge-to-body bolts.
6. Adjust the front door. For additional information, refer to BODY PANEL SYSTEM - BODY REPAIRS .
7. Tighten the front door hinge-to-body bolts to 33 Nm (24 lb-ft).

   All adjustments

8. Install the front door latch striker.
   • Tighten to 25 Nm (18 lb-ft).
