Illustrations in this service information may be used instead of written step instructions. Color-coding (see color scheme illustration) is used to communicate the required step action or actions. Service action icons may be used to add information regarding the required action. Refer to SYMBOLS GLOSSARY .
Illustration Color-Coding
| Item | Color | Description |
|---|---|---|
| 1 | Blue | Target or primary component to be removed/installed (or disassembled/assembled) |
| 2 | Green | Components that need to be removed prior to or installed after the target/primary |
| 3 | Brown | Components that need to be removed prior to or installed after the target/primary |
| 4 | Yellow | Components to be set aside for access, but not removed. Also highlighted areas to inspect or adjust |
| 5 | Magenta | Electrical connectors and fasteners such as nuts, bolts, clamps, or clips to be: detached, attached, loosened, moved, removed or installed |
| 6 | Pale Blue | Special tool(s), general equipment, or common tools used in an uncommon way |
Other Color-Coding
| Color(s) | Description |
|---|---|
| *Alternating Blue and White | Chemical, adhesive or sealer apply areas |
| Red | Sectioned or cut-away areas |
| Grey | Background components shown for location information |

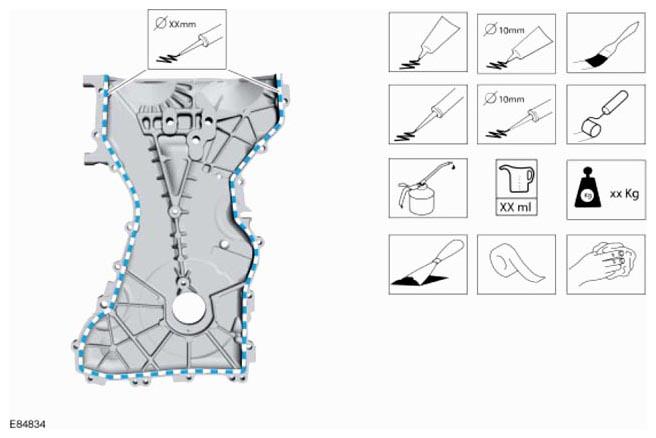

*: Alternating Blue and White - Chemical, adhesive or sealer apply areas, see Figure.
