Rear Lamp Assembly: Notes
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

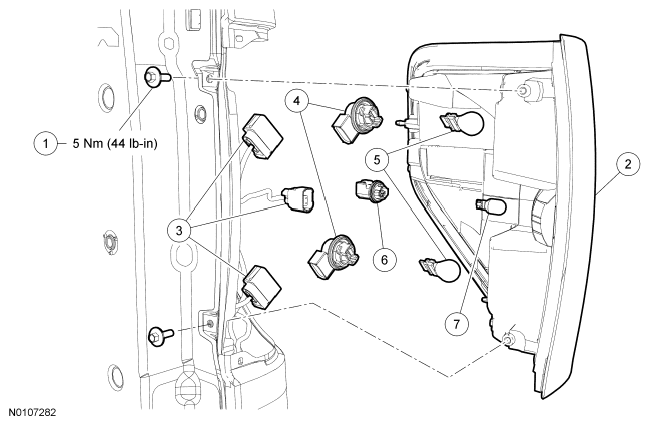

Styleside lamp shown in illustration, flareside similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | N808955 | Rear lamp assembly bolts (2 required) |
| 2 | 13405/13404 | Rear lamp assembly (LH/RH) |
| 3 | - | Rear lamp assembly electrical connectors (part of 13A409) |
| 4 | 13411 | Rear stop/turn lamp bulb holder |
| 5 | 13466 | Rear stop/turn lamp bulb |
| 6 | 13411 | Reversing lamp bulb holder |
| 7 | 13466 | Reversing lamp bulb |
