Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Front Controls Interface Module (FCIM). Front Controls Interface Module (FCIM).
Remove the 4 bolts and the Front Display Interface Module (FDIM).
- Disconnect the electrical connectors.
- To install, tighten to 2.5 Nm (23 lb-in).

  Fig 1: Removing Front Display Interface Module Electrical Connectors
  Courtesy of FORD MOTOR CO.
Remove the 4 screws and remove the Accessory Protocol Interface Module (APIM) from the FDIM.
- To install, tighten to 0.6 Nm (5 lb-in).

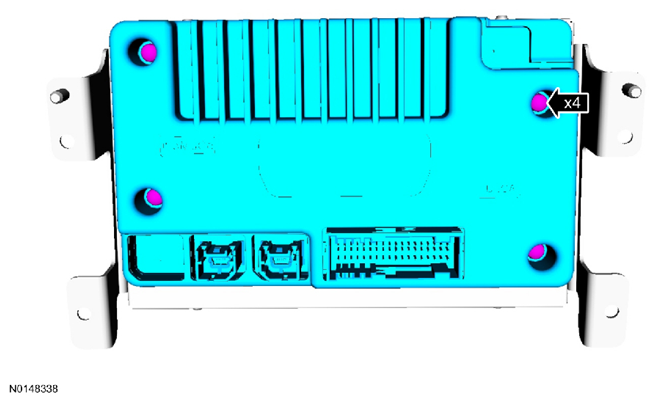

  Fig 2: Locating Accessory Protocol Interface Module Mounting Screws
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
