Radiator Hoses
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

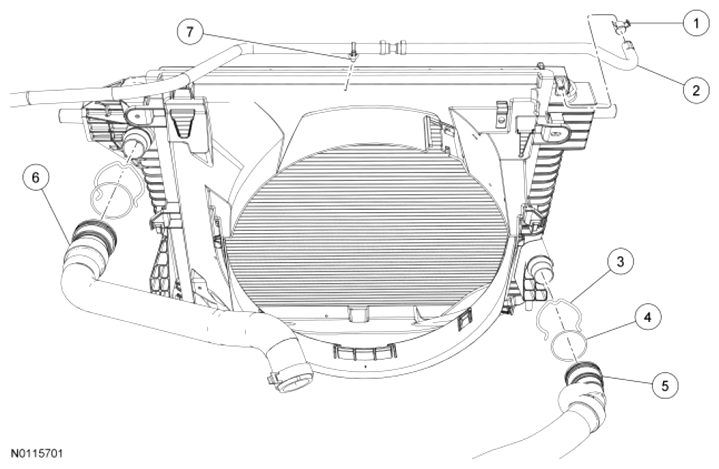

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Radiator-to-degas bottle hose clamp (part of 8075A) |
| 2 | 8075 | Radiator-to-degas bottle hose |
| 3 | 8B365 | Radiator hose retaining clip (2 required) |
| 4 | 8590 | Radiator hose O-ring seal (2 required) |
| 5 | 8286 | Lower radiator hose |
| 6 | 8260 | Upper radiator hose |
| 7 | - | Radiator-to-degas bottle hose retainer (part of 8075A) |
