Removal And Installation: Clockspring: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

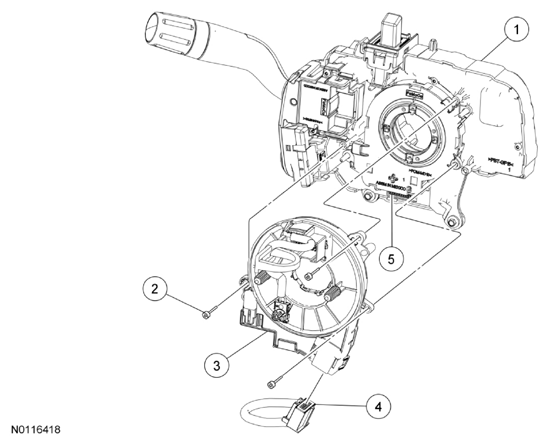

Fig 1: Identifying Clockspring And Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3F791	Steering Column Control Module (SCCM)
2	W506943	Clockspring screws (3 required)
3	14A664	Clockspring
4	-	Clockspring electrical connector (part of 14401)
5	-	SCCM electrical connector (part of 3F791)
