Console - Floor: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

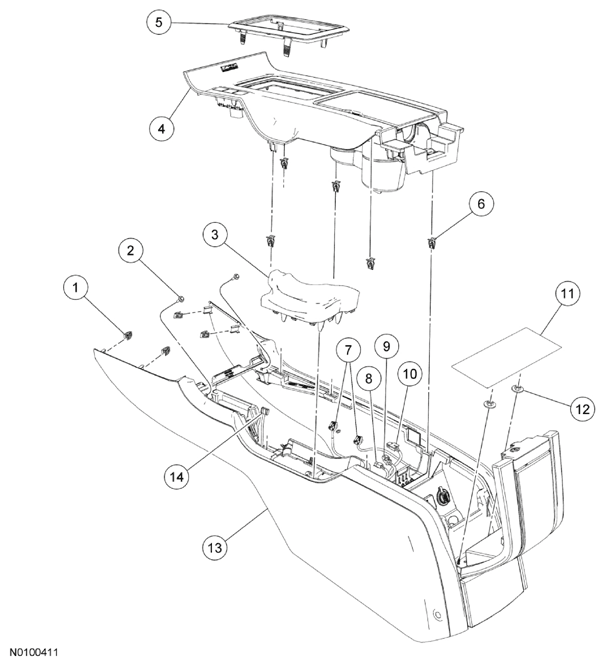

Floor console with automatic transmission shown in illustration, floor console with manual transmission similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Floor console side panel retaining clip (part of 045A36) (4 required) |
| 2 | W707628 | Floor console screw (2 required) |
| 3 | 2404 | Parking brake control handle boot |
| 4 | 044D90 | Floor console finish panel |
| 5 | 7E391 | Selector lever bezel |
| 6 | - | Floor console finish panel retaining clip (part of 045A36) (5 required) |
| 7 | 14A005 | Ambient light electrical connectors |
| 8 | 14A005 | Universal Serial Bus (USB) electrical connector (if equipped) |
| 9 | 14A005 | Audio jack electrical connector |
| 10 | 14A005 | Power point electrical connector |
| 11 | 13586 | Storage compartment mat |
| 12 | W711098 | Floor console nut (2 required) |
| 13 | 045A36 | Floor console |
| 14 | 14A005 | Traction/hazard/trunk switch electrical connector |
