Instrument Panel Removal
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

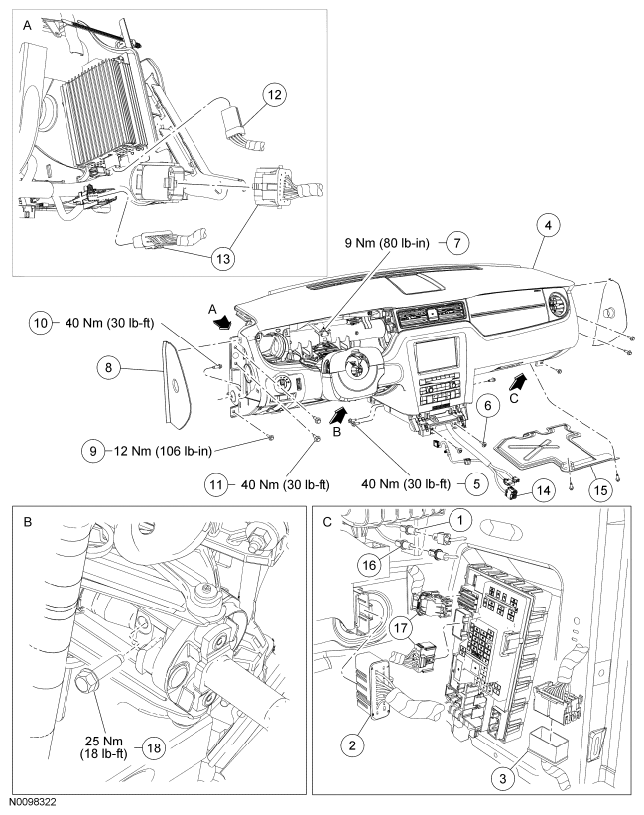

| Item | Part Number | Description |
|---|---|---|
| 1 | 14401 | Antenna in-line connector |
| 2 | 14401 | Blower motor in-line electrical connector |
| 3 | 14401 | Bulkhead electrical connector |
| 4 | 04320 | Instrument panel |
| 5 | W711097 | Instrument panel center support bolt (3 required) |
| 6 | W711564 | Instrument panel center support screw (2 required) |
| 7 | N811309 | Instrument panel cowl top bracket nut |
| 8 | 04480 RH/04481 LH | Instrument panel side finish panel |
| 9 | W711097 | Instrument panel lower support bolt (2 required) |
| 10 | W707491 | Instrument panel side support bolt |
| 11 | W711097 | Instrument panel upper support bolt (4 required) |
| 12 | 14401 | LH audio amplifier electrical connector |
| 13 | 14401 | LH lower cowl electrical connectors |
| 14 | 14401 | Restraints Control Module (RCM) connector |
| 15 | 54043A88 | RH lower instrument panel insulator |
| 16 | 14401 | Satellite radio antenna in-line connector |
| 17 | 14401 | Smart Junction Box (SJB) electrical connectors |
| 18 | W704980 | Steering column shaft bolt |
