Body Control Module (BCM)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

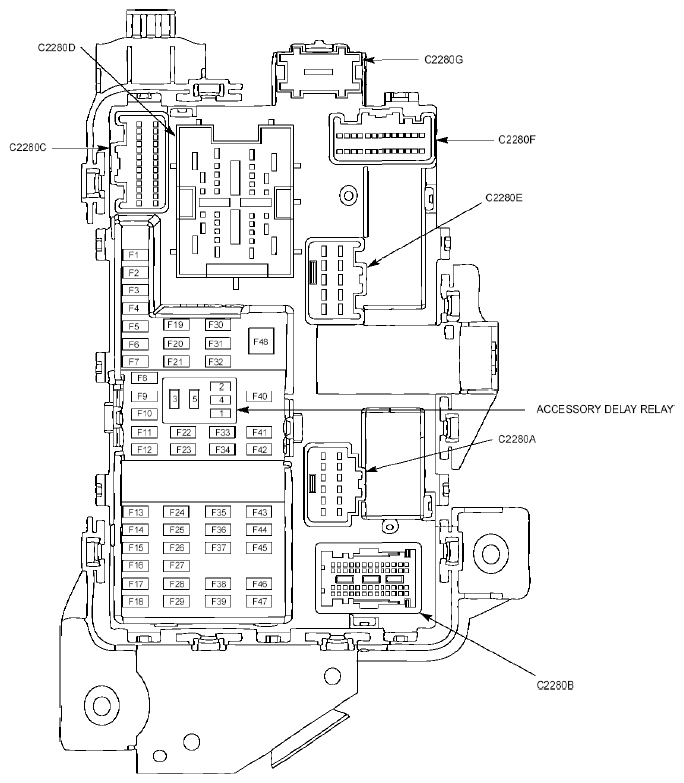

BODY CONTROL MODULE RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ACCESSORY DELAY RELAY |
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, left front |
| F2 | 15 | Accessory Protocol Interface Module (APIM) |
| F3 | 30 | Power window motor, right front |
| F4 | 10 | Tool link reader, Battery saver relay, Dome lamp, front, Vanity mirror lamps, Interior map/lamps |
| F5 | 20 | Seat control switch, driver side front - with memory |
| F6 | 5 | Not used |
| F7 | 7.5 | Exterior rear view mirror switch, Driver Seat Module (DSM) |
| F8 | 10 | Not used |
| F9 | 10 | Front Display Interface Module (FDIM) - without navigation, Front Controls Interface Module (FCIM), Global Positioning System Module (GPSM) - with SYNC |
| F10 | 10 | Run/acc relay |
| F11 | 10 | Instrument Panel Cluster (IPC) |
| F12 | 15 | High mounted stoplamp, Exterior rear view mirrors, Interior map/lamps, Dome lamp, front, Ambient lighting switch, Floor shifter, Upfitter switch, Hill descent control switch, Off-road mode switch, Overhead console switch assembly, Hazard/pad/traction switch, Headlamp switch, Instrument panel dimming switch, Audio Control Module (ACM), Mode Select Switch (MSS), Steering wheel switches, In-dash computer |
| F13 | 15 | Park/turn lamps, Trailer tow relay right turn, Park/stop/turn lamps, right rear |
| F14 | 15 | Park/turn lamps, Trailer tow relay, left turn, Park/stop/turn lamps, left rear |
| F15 | 15 | High mounted stoplamp, Reversing lamp relay, Reversing lamps Auto-dimming interior mirror |
| F16 | 10 | Right headlamp - low beam |
| F17 | 10 | Left headlamp - low beam |
| F18 | 10 | Brake shift interlock, Passive anti-theft transceiver, Floor shifter, Powertrain Control Module (PCM), Keyless entry keypad |
| F19 | 20 | Audio Digital Signal Processing (DSP) module |
| F20 | 20 | Door latch actuators |
| F21 | 10 | Not used |
| F22 | 20 | Horn relay |
| F23 | 15 | Steering Column Control Module (SCCM) |
| F24 | 15 | Data Link Connector (DLC), Steering Column Control Module (SCCM) |
| F25 | 15 | Not used |
| F26 | 5 | Tire Pressure Monitor (TPM) module |
| F27 | 20 | Not used |
| F28 | 15 | Ignition switch |
| F29 | 20 | Audio Control Module (ACM), In-dash computer |
| F30 | 15 | Side marker lamps, High mounted stoplamp, Park/stop/turn lamps, Front marker lamps |
| F31 | 5 | Trailer Brake Control (TBC) module, Brake Pedal Position (BPP) switch, Powertrain Control Module (PCM) |
| F32 | 15 | Roof opening panel module, Door lock switches, Master window control switch, Power window motors, Window control switch, passenger side, Electronic compass, Auto-dimming interior mirror, Heated seat switches |
| F33 | 10 | Heated seat module |
| F34 | 10 | Parking Aid Module (PAM), Video camera, Off-road mode switch, Mode Select Switch (MSS) |
| F35 | 5 | Hill descent control switch |
| F36 | 10 | Restraints Control Module (RCM), Occupant Classification System Module (OCSM) |
| F37 | 10 | Trailer Brake Control (TBC) module, Telematics module |
| F38 | 10 | DC/AC inverter module, Audio Control Module (ACM), In-dash computer |
| F39 | 15 | Headlamps - high beam |
| F40 | 10 | Trailer tow relay, parking lamps, License plate lamps, Park/stop/turn lamps, Marker lamps |
| F41 | 7.5 | Hazard/pad/traction switch, Upfitter switch |
| F42 | 5 | Tow haul switch, Floor shifter |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Not used |
| F46 | 10 | HVAC module |
| F47 | 15 | Fog lamp relay, Exterior rear view mirror, passenger side Exterior rear view mirror, driver side |
| F48 | 30 c.b. | Master window control switch, Overhead console switch |
AUXILIARY BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Upfitter Relay 2 |
| Upfitter Relay 4 |
| Front Camera Washer Relay |
| Upfitter Relay 3 |
| Upfitter Relay 1 |
