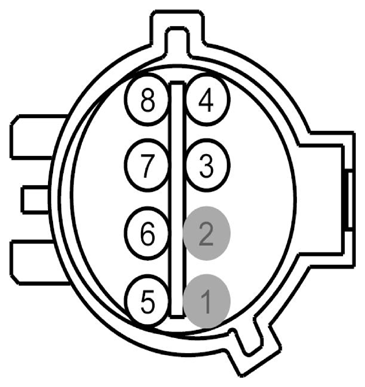

Keyless Entry Keypad Connector End View (C500)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | GD134 (BK-VT) | 20 | GROUND - PILLAR A LEFT # 2ND STUD | |
| 4 | GD134 (BK-VT) | 20 | GROUND - PILLAR A LEFT # 2ND STUD | |
| 5 | CPK31 (YE-GN) | 20 | SWITCH - KEYLESS KEYPAD LINE C | |
| 6 | CPK30 (VT-GN) | 20 | SWITCH - KEYLESS KEYPAD LINE B | |
| 7 | CPK28 (WH-GN) | 20 | CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION | |
| 8 | CPK29 (GY-BU) | 20 | SWITCH - KEYLESS KEYPAD LINE A |
