Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

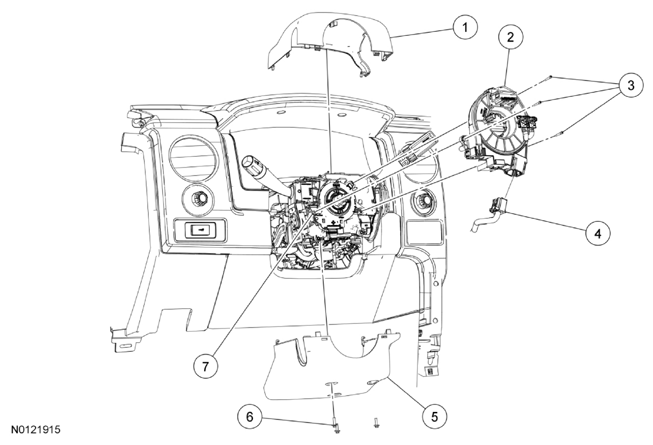

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 14A644 | Clockspring |
| 3 | W506943 | Clockspring screws (3 required) |
| 4 | - | Clockspring electrical connector (part of 14401) |
| 5 | 3530 | Lower steering column shroud |
| 6 | - | Lower steering column shroud screw (3 required) |
| 7 | 3F791 | Steering Column Control Module (SCCM) |
