Side Airbag: Notes

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: Driver seat shown, passenger similar.

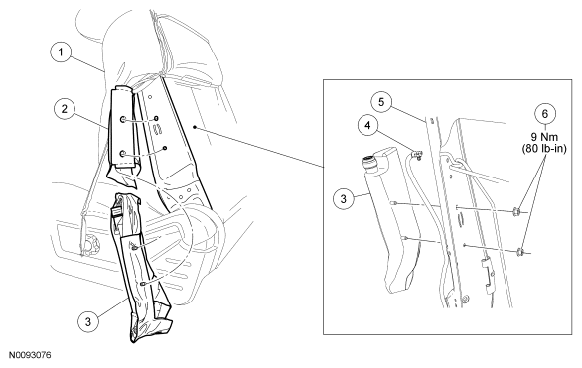

Fig 1: Side Air Bag Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	64417	Backrest cover
2	-	Deployment chute (part of 64417)
3	611D10	Side air bag module
4	-	Electrical connector (part of 14K155)
5	61018	Seat backrest frame
6	W520111	Side air bag module nuts (2 required)
