Steering Wheel Rotation Sensor: Installation
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

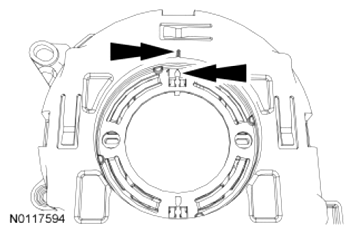

- Align the arrow on the inner ring of the sensor to the notch on the sensor body.
- Position the sensor on the Steering Column Control Module (SCCM).
- Install the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
