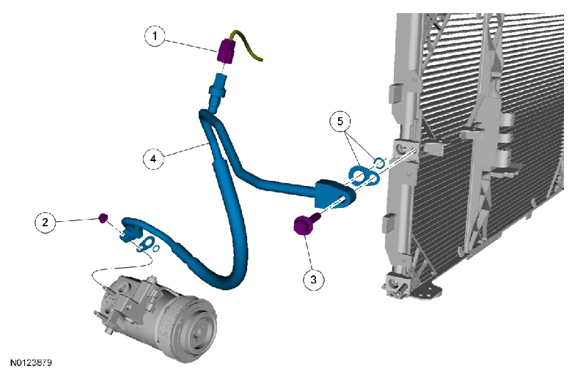

Compressor-to-Condenser Discharge Line
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | A/C pressure transducer electrical connector |
| 2 | W520413 | A/C compressor discharge fitting nut - 15 Nm (133 lb-in) |
| 3 | W715219 | A/C condenser inlet fitting bolt - 20 Nm (177 lb-in) |
| 4 | 19972 | Compressor-to-condenser discharge line |
| 5 | 19B596 | O-ring seal and gasket seal kit (2 required) |
