In-Vehicle Temperature and Humidity Sensor: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

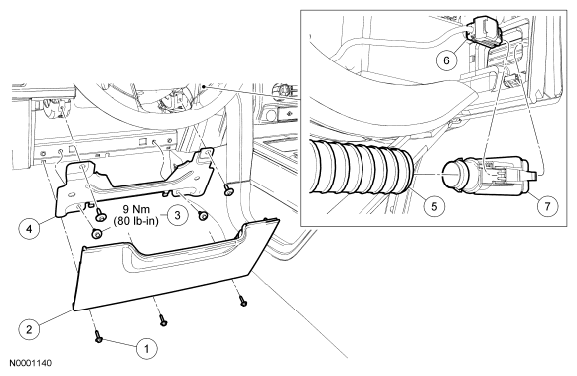

| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Steering column cover screw (3 required) |
| 2 | 1504459 | Steering column cover |
| 3 | N706599 | Steering column cover reinforcement bolt (4 required) |
| 4 | 15017A26 | Steering column cover reinforcement |
| 5 | - | In-vehicle temperature and humidity sensor aspirator hose (part of 19C734) |
| 6 | 14401 | In-vehicle temperature and humidity sensor electrical connector |
| 7 | 19C734 | In-vehicle temperature and humidity sensor |
