Front Controls Interface Module (FCIM): Notes

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

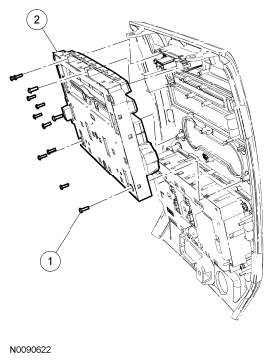

Fig 1: Identifying Front Controls Interface Module (FCIM) With Screws

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front Controls Interface Module (FCIM) screws (12 required) (part of 18842)
2	18842	FCIM
