Front Halfshaft: Assembly

• 1.

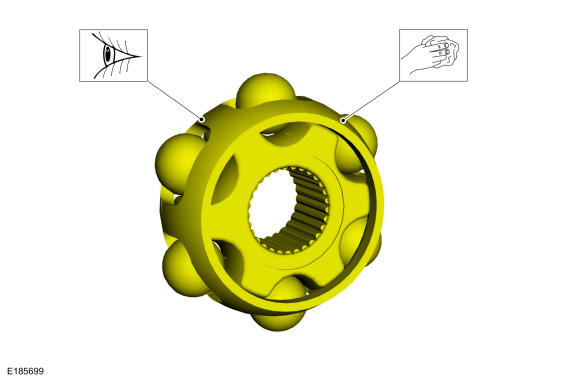

  Clean and inspect the CV joint cage.

• 2.

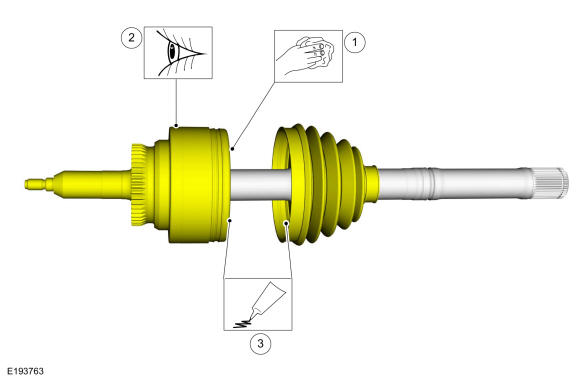

  Inspect the outer CV joint housing for damage.

• 3.

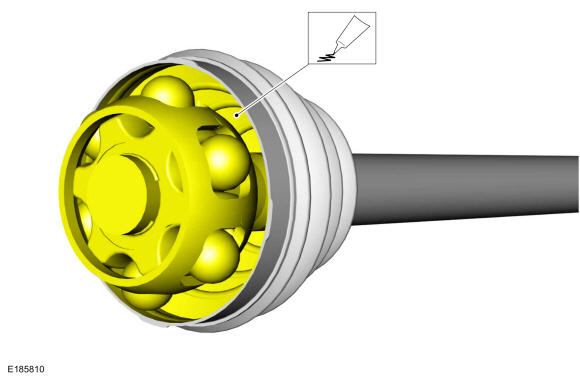

  Install The grease sachet evenly in the CV joint boot and housing.

• 1.

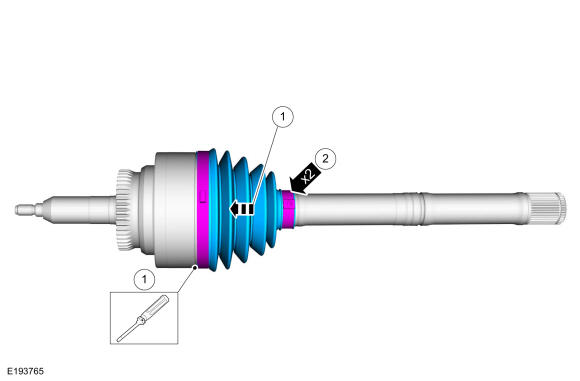

  NOTE: When installing the CV joint housing, insert a small flat blade screwdriver under the CV joint boot seat to allow air to escape.

  Using a flat blade screw driver to allow air to escape, install the CV joint housing.

  Use the General Equipment: Flat Headed Screw Driver

• 2.

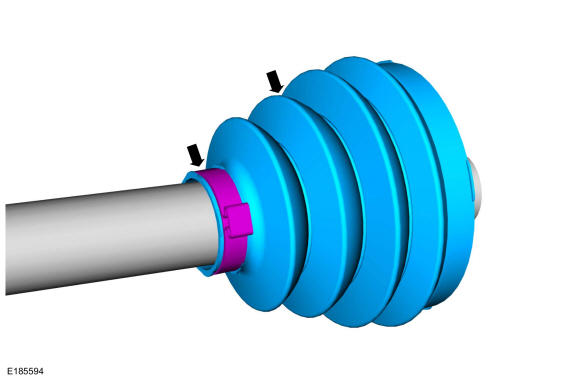

  Using boot clamp pliers, install the new CV joint boot clamps.

  Use the General Equipment: Boot Clamp Pliers

Clean and inspect the CV joint cage.

Use the General Equipment: Boot Clamp Pliers

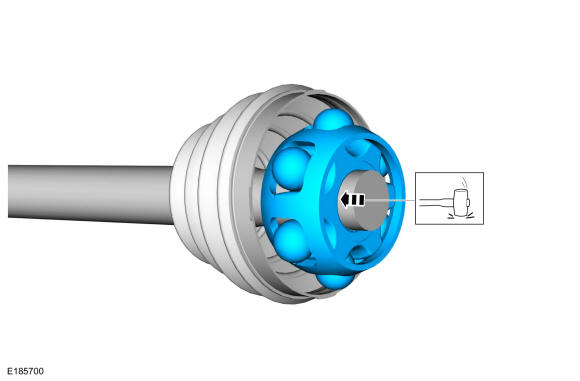

Using a soft face mallet, install the CV joint cage.

Use the General Equipment: Rubber Mallet

Material

: Constant Velocity Joint Grease (High Temperature) / XG-5 (WSS-M1C258-A1)

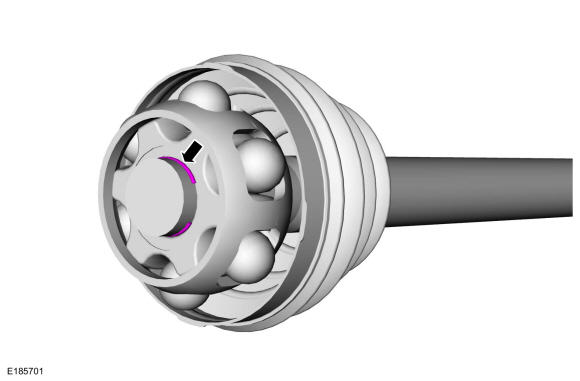

Install the inner CV housing and the new inner CV housing retaining ring.

• 1.

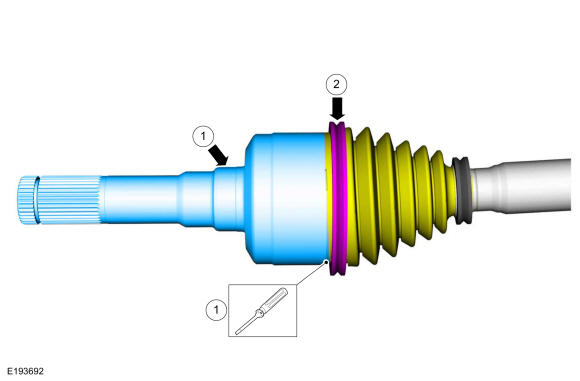

  Using a flat blade screw driver to allow air to escape, install the CV joint housing.

  Use the General Equipment: Flat Headed Screw Driver

• 2.

  Using boot clamp pliers, install the new large CV joint boot clamp.

  Use the General Equipment: Boot Clamp Pliers
