Front Halfshaft: Disassembly

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

1.

Remove the halfshaft. REFER to: Halfshaft .

2.
- 1.

  Remove and discard the large CV boot clamp.
- 2.

  Position the CV boot to access the inner CV housing retaining ring.

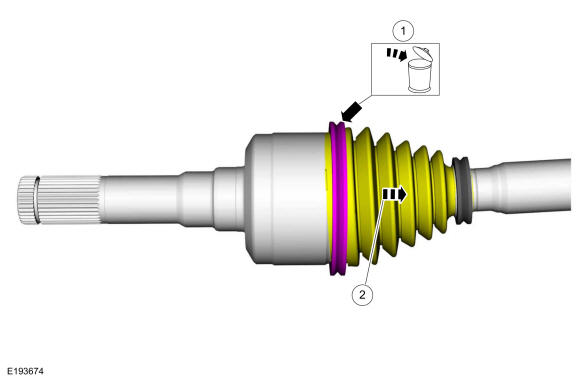

GFD38772

Courtesy of FORD MOTOR COMPANY

3.

Remove and discard the inner CV housing retaining ring.

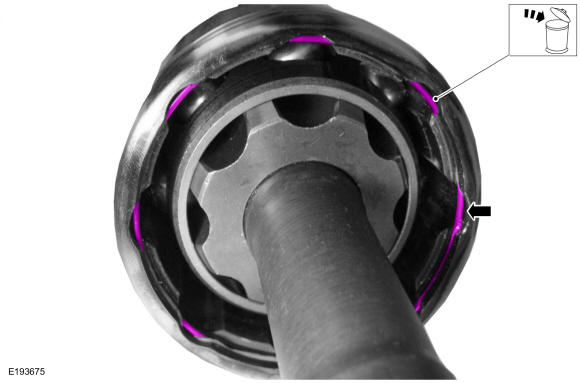

GFD38773

Courtesy of FORD MOTOR COMPANY

4.

Remove the inner CV joint housing.

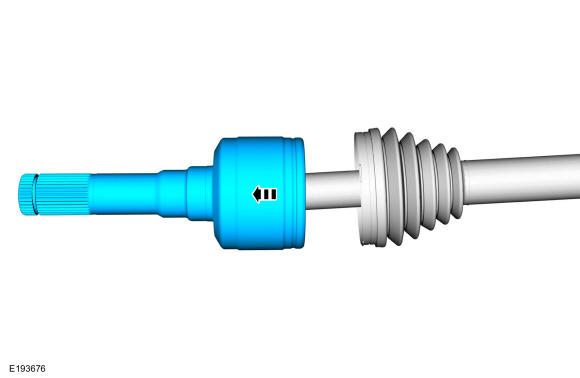

GFD38774

Courtesy of FORD MOTOR COMPANY

5.

NOTE: The CV joint cage balls are free to fall out.

Remove and discard the CV joint cage circlip.

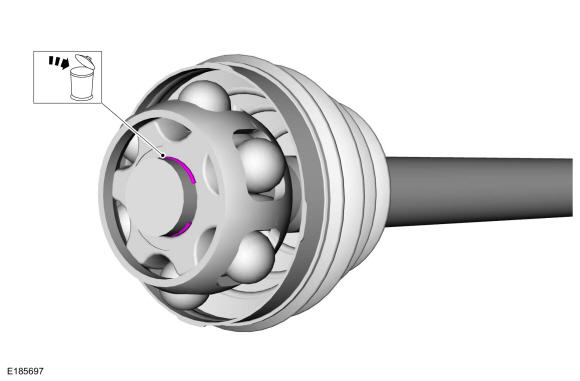

GFD38775

Courtesy of FORD MOTOR COMPANY

6.

NOTE: The CV joint cage balls are free to fall out.

Using general equipment, remove the CV joint cage.

Use the General Equipment: Three Leg Puller

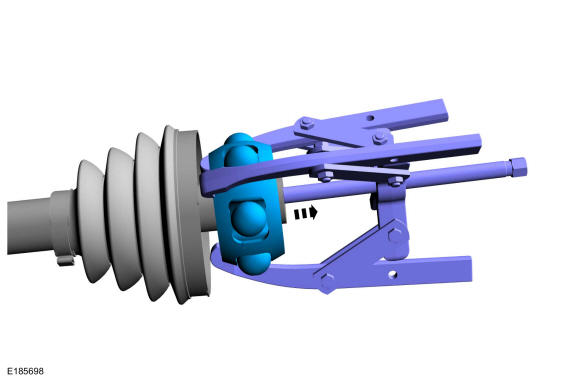

GFD38776

Courtesy of FORD MOTOR COMPANY

7.

Remove and discard the small clamp and remove the CV joint boot.

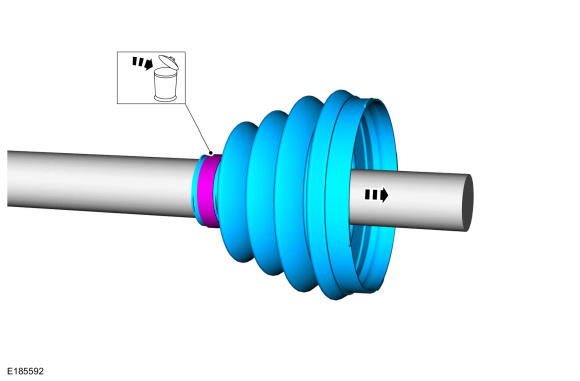

GFD38777

Courtesy of FORD MOTOR COMPANY

8.
- 1.

  Remove and discard the CV joint boot clamps.
- 2.

  Remove the CV joint boot.

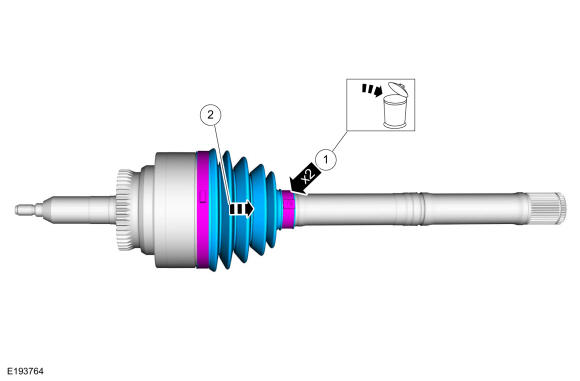

GFD38778

Courtesy of FORD MOTOR COMPANY
