Lower Arm: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

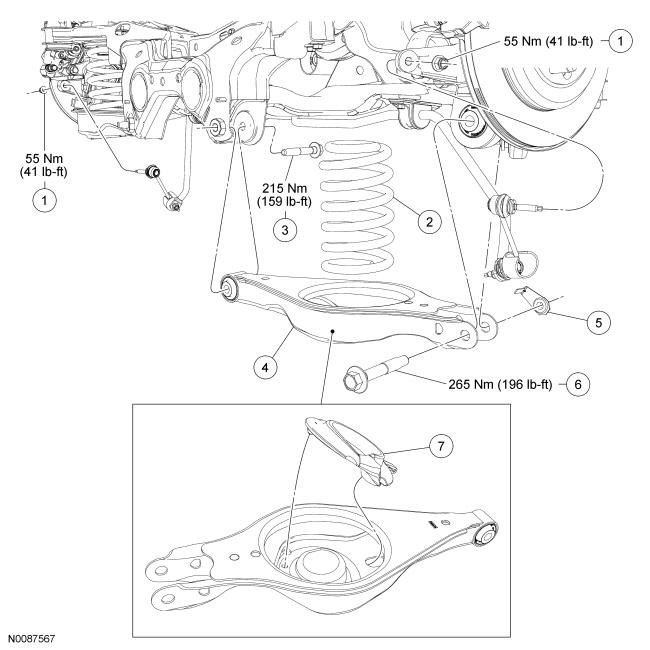

Front Wheel Drive (FWD) vehicle shown, All-Wheel Drive (AWD) vehicle similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520213 | Stabilizer bar link upper nuts (2 required) |
| 2 | 5560 | Spring |
| 3 | W715127 | Lower arm-to-subframe bolt |
| 4 | 5B530 | Lower arm |
| 5 | W520517 | Lower arm-to-knuckle nut |
| 6 | W715127 | Lower arm-to-knuckle bolt |
| 7 | 5599 | Spring lower seat |
