Strut and Spring Assembly: Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

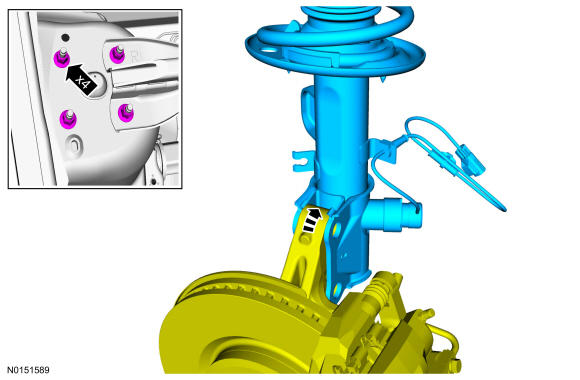

1.
- Tighten to 63 Nm (46 lb-ft).

Courtesy of FORD MOTOR COMPANY

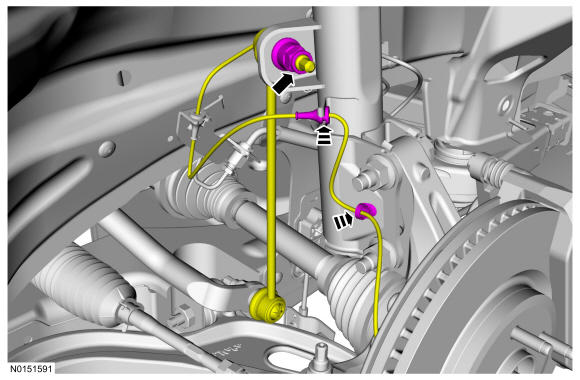

2.
- Tighten to 225 Nm (166 lb-ft).

Courtesy of FORD MOTOR COMPANY

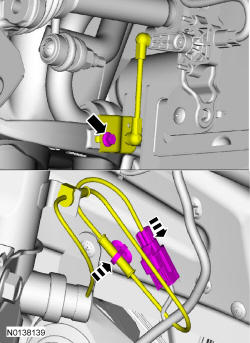

3.

NOTE: If equipped with dynamic suspension.
- Tighten to 30 Nm (22 lb-ft).

Courtesy of FORD MOTOR COMPANY

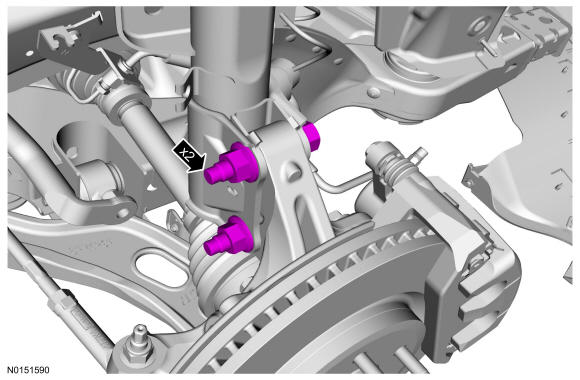

4.
- Tighten to 150 Nm (111 lb-ft).

Courtesy of FORD MOTOR COMPANY

5.

Install the wheel and tire. Refer to Wheels and Tires .

6.

Check front camber adjustment. Refer to Suspension System - General Information

7.

If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
