Vehicle Dynamics Module (VDM): Removal

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

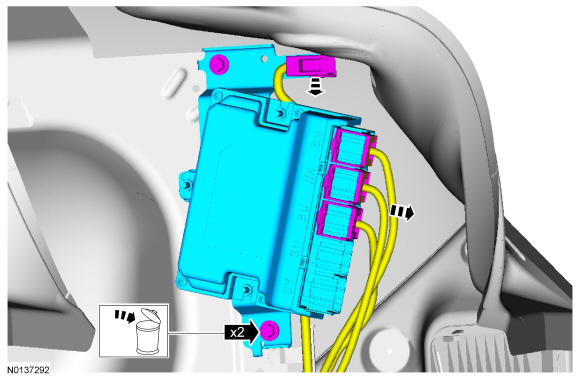

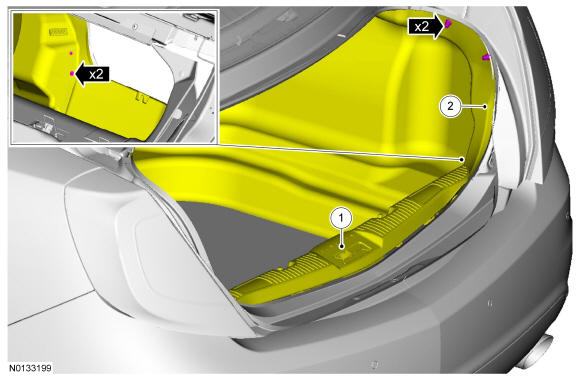

NOTE: The Vehicle Dynamics Module (VDM) is mounted to the RH side of the luggage compartment behind the luggage compartment side trim panel.

Courtesy of FORD MOTOR COMPANY

2.

Discard the specified component. Follow local disposal regulations.
- To install, tighten to 9 Nm (80 lb-in).

Courtesy of FORD MOTOR COMPANY
