Console - Floor: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

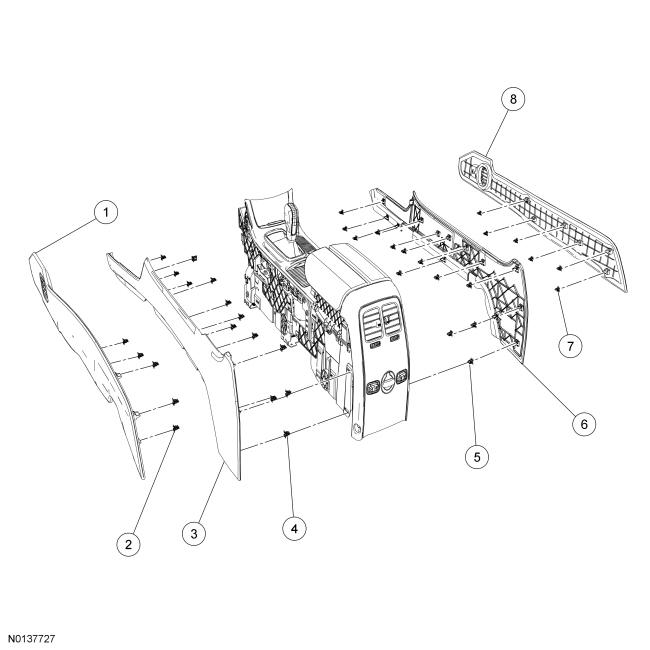

Trim Panels
| Item | Part Number | Description |
|---|---|---|
| 1 | 5404609 | LH floor console lower trim panel |
| 2 | W710338 | LH floor console lower trim panel clip (6 required) |
| 3 | 5404608 | LH floor console upper trim panel |
| 4 | W710338 | LH floor console upper trim panel clip (14 required) |
| 5 | W710338 | RH floor console upper trim panel clip (14 required) |
| 6 | 5404608 | RH floor console upper trim panel |
| 7 | W710338 | RH floor console lower trim panel clip |
| 8 | 5404609 | RH floor console lower trim panel |

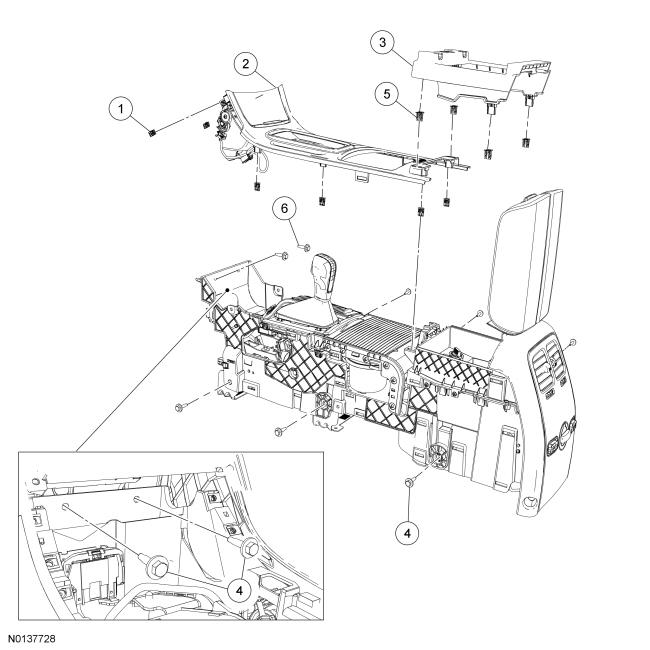

Trim Panels and Fasteners
| Item | Part Number | Description |
|---|---|---|
| 1 | W710338 | Floor console upper finish panel clip (8 required) |
| 2 | 54045A76 | Floor console upper finish panel |
| 3 | 54045A76 | Floor console stowage bin finish panel |
| 4 | W505424 | Floor console bolts (6 required) |
| 5 | W710338 | Floor console stowage bin finish panel clips (4 required) |
| 6 | W505424 | Floor console-to-instrument panel bolts (2 required) |
