Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item |
Specification |
| Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |
 Courtesy of FORD MOTOR COMPANY
|

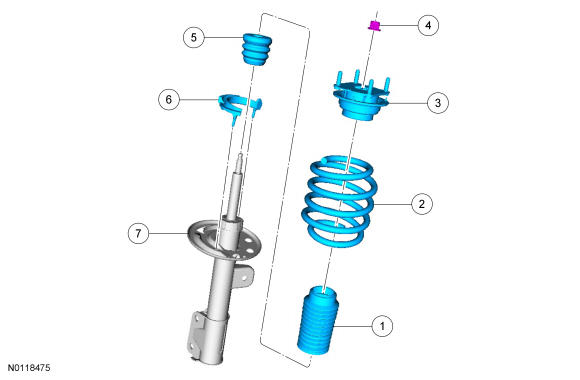

| Item |
Part Number |
Description |
| 1 |
18A047 |
Dust boot |
| 2 |
5310 |
Spring |
| 3 |
18183 |
Upper strut mount |
| 4 |
W713968 |
Strut rod nut |
| 5 |
18198 |
Jounce bumper |
| 6 |
5415 |
Lower spring isolator |
| 7 |
18124 |
Strut assembly |
