Section 2971 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

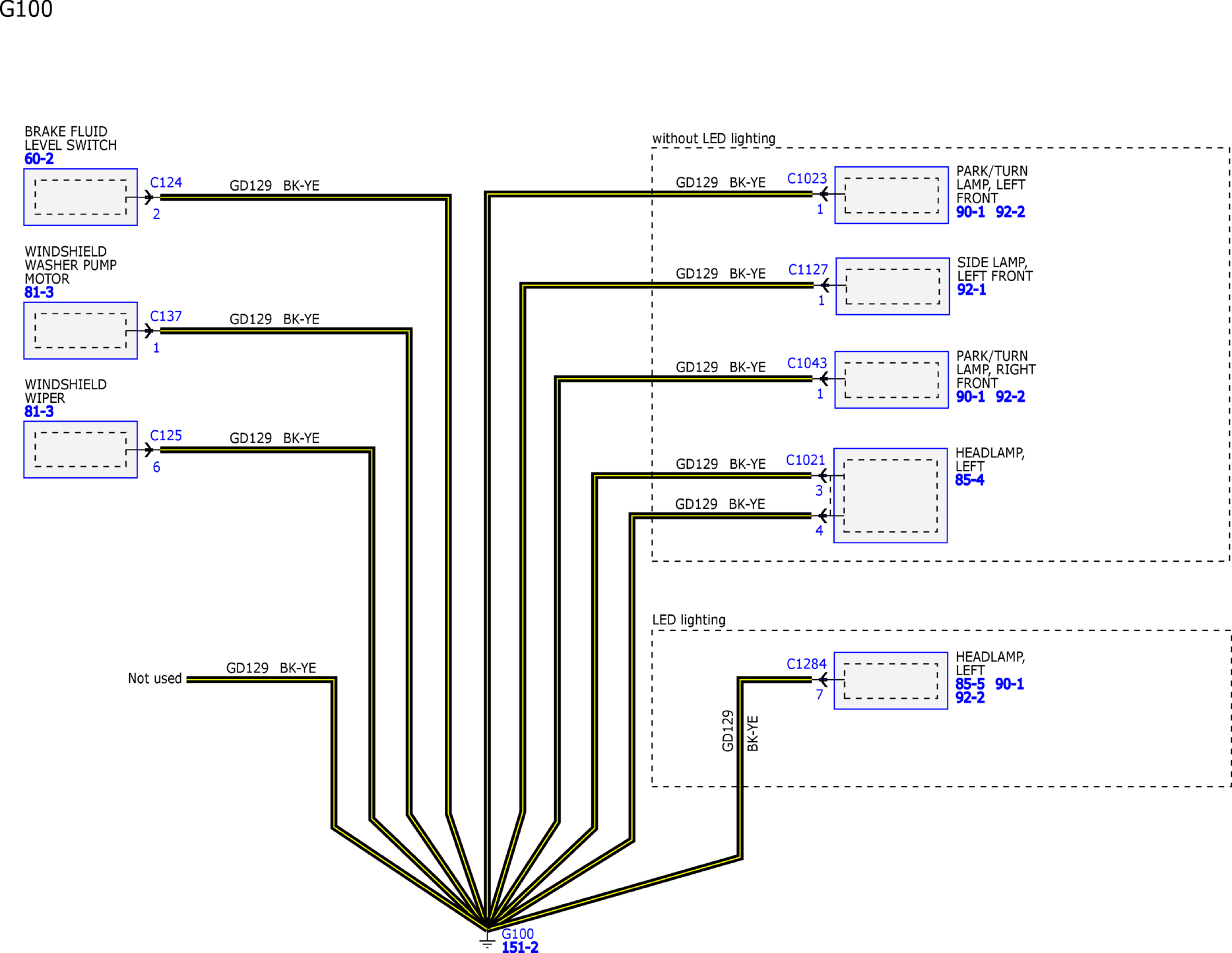

GFDW46277Courtesy of FORD MOTOR COMPANY

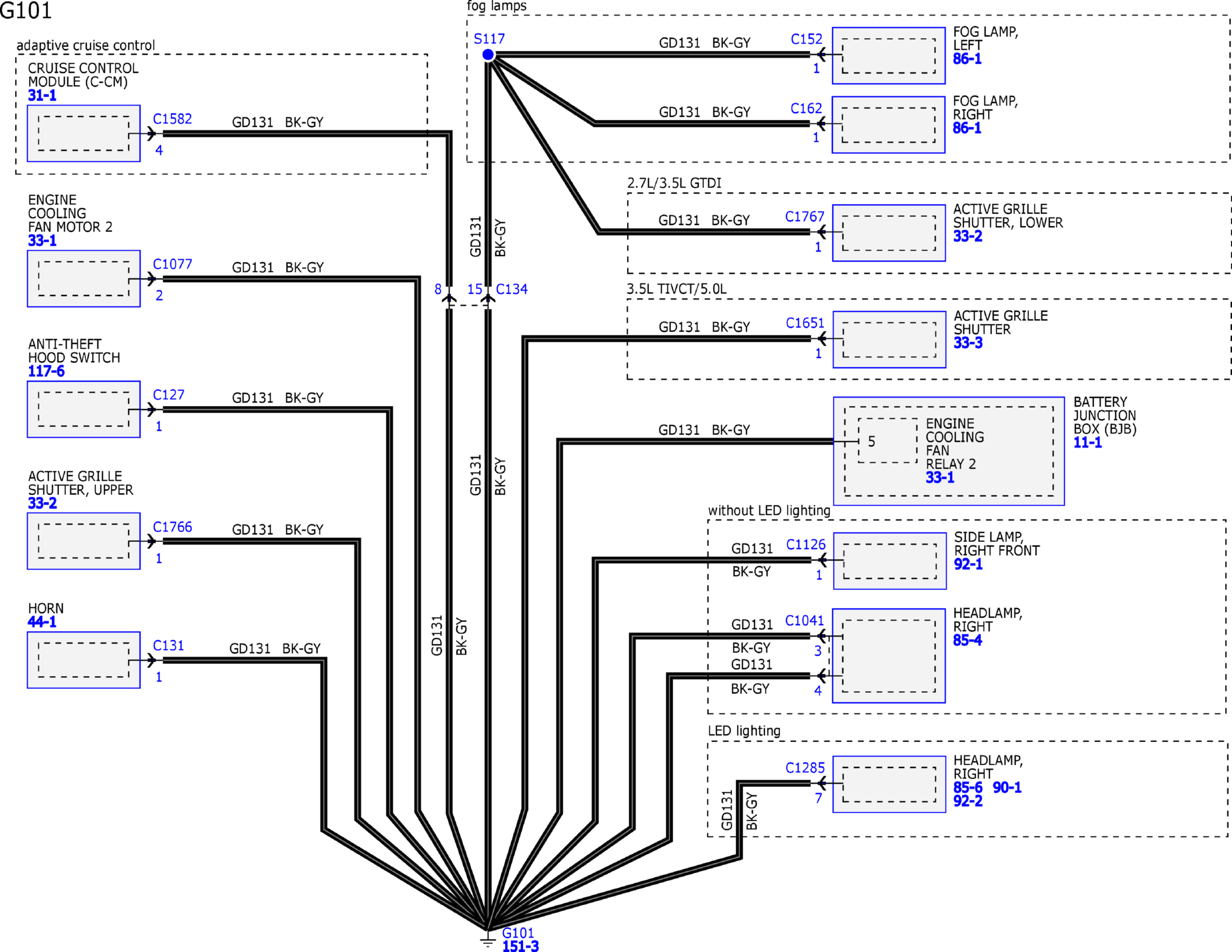

GFDW46278Courtesy of FORD MOTOR COMPANY

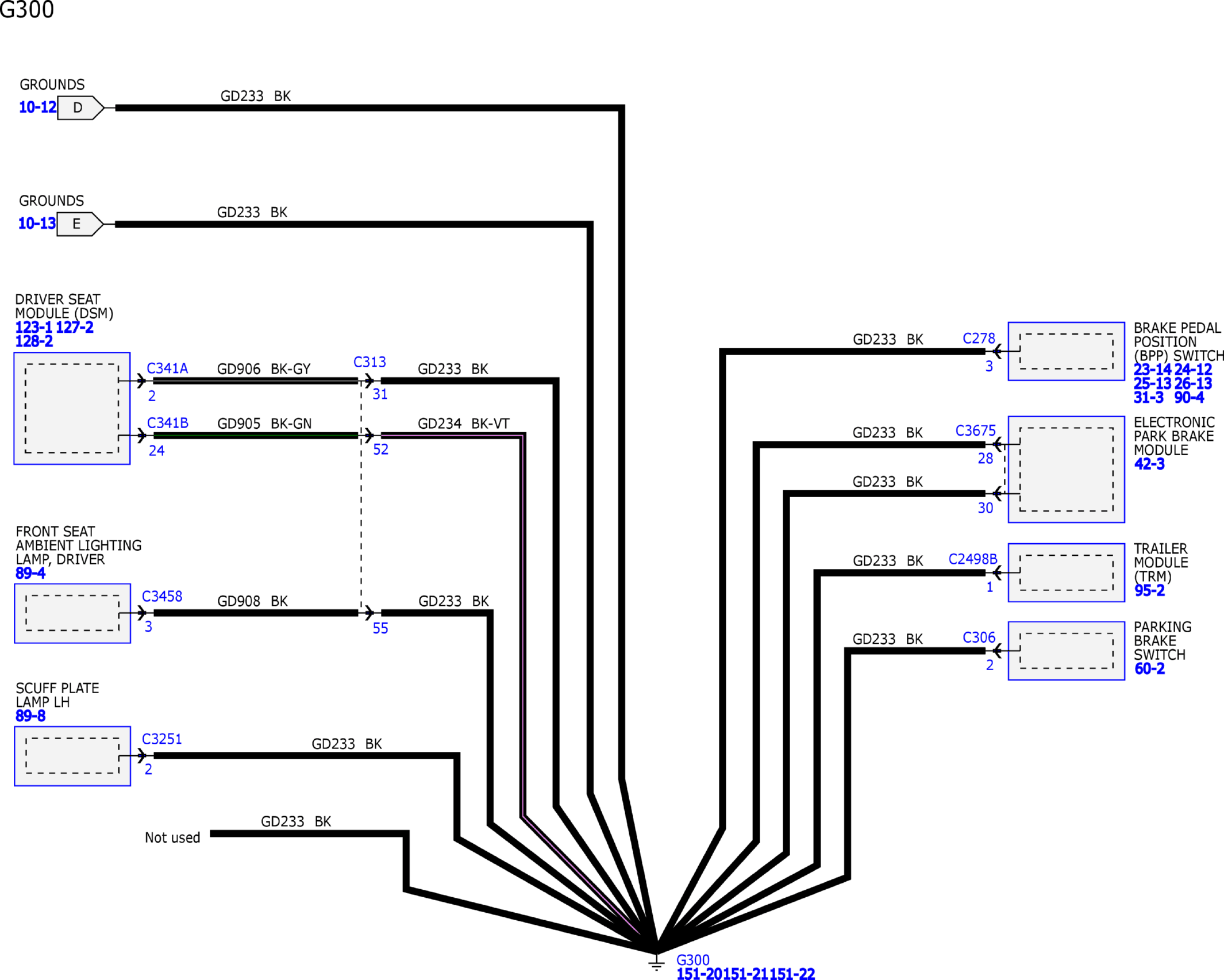

GFDW46279Courtesy of FORD MOTOR COMPANY

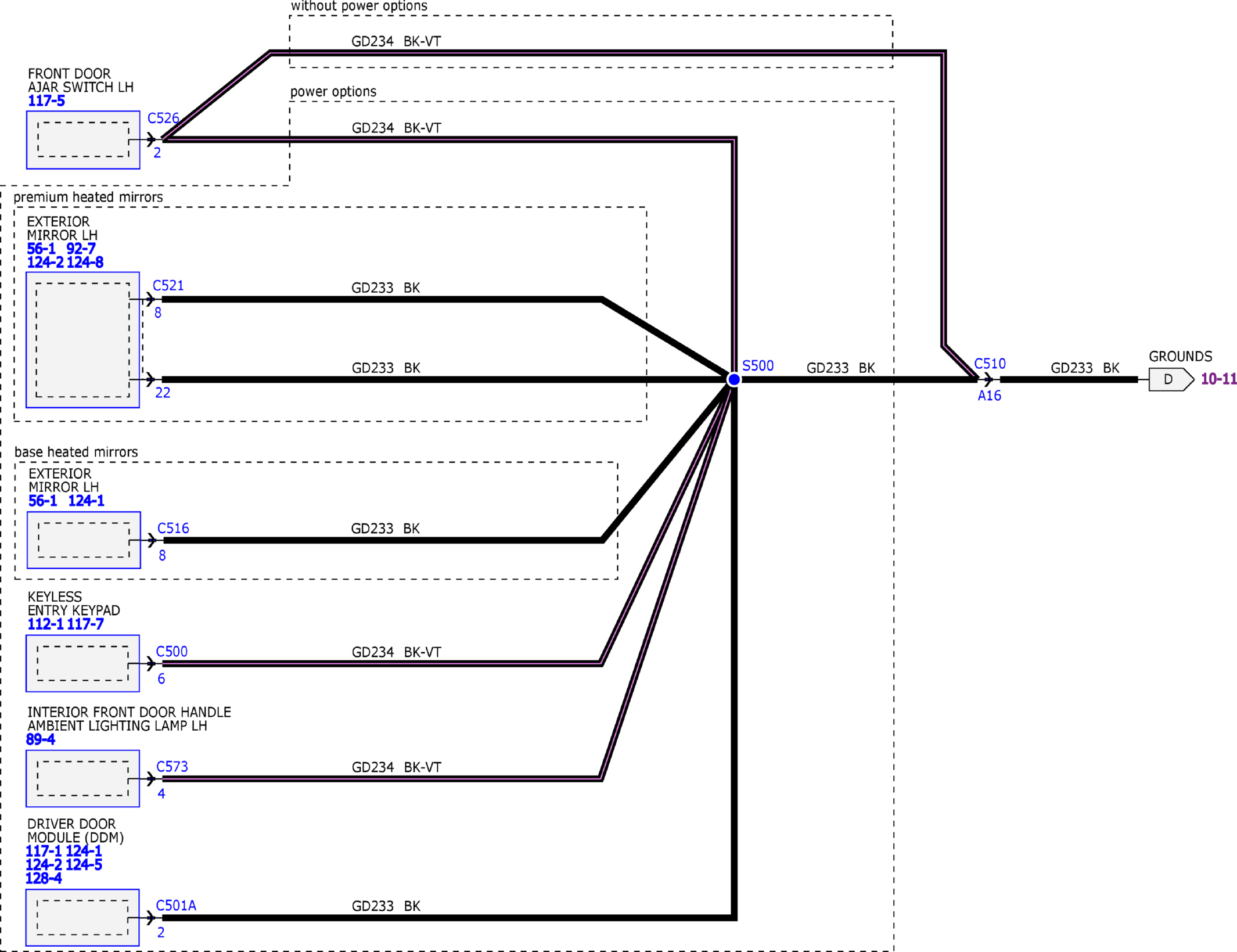

GFDW46280Courtesy of FORD MOTOR COMPANY

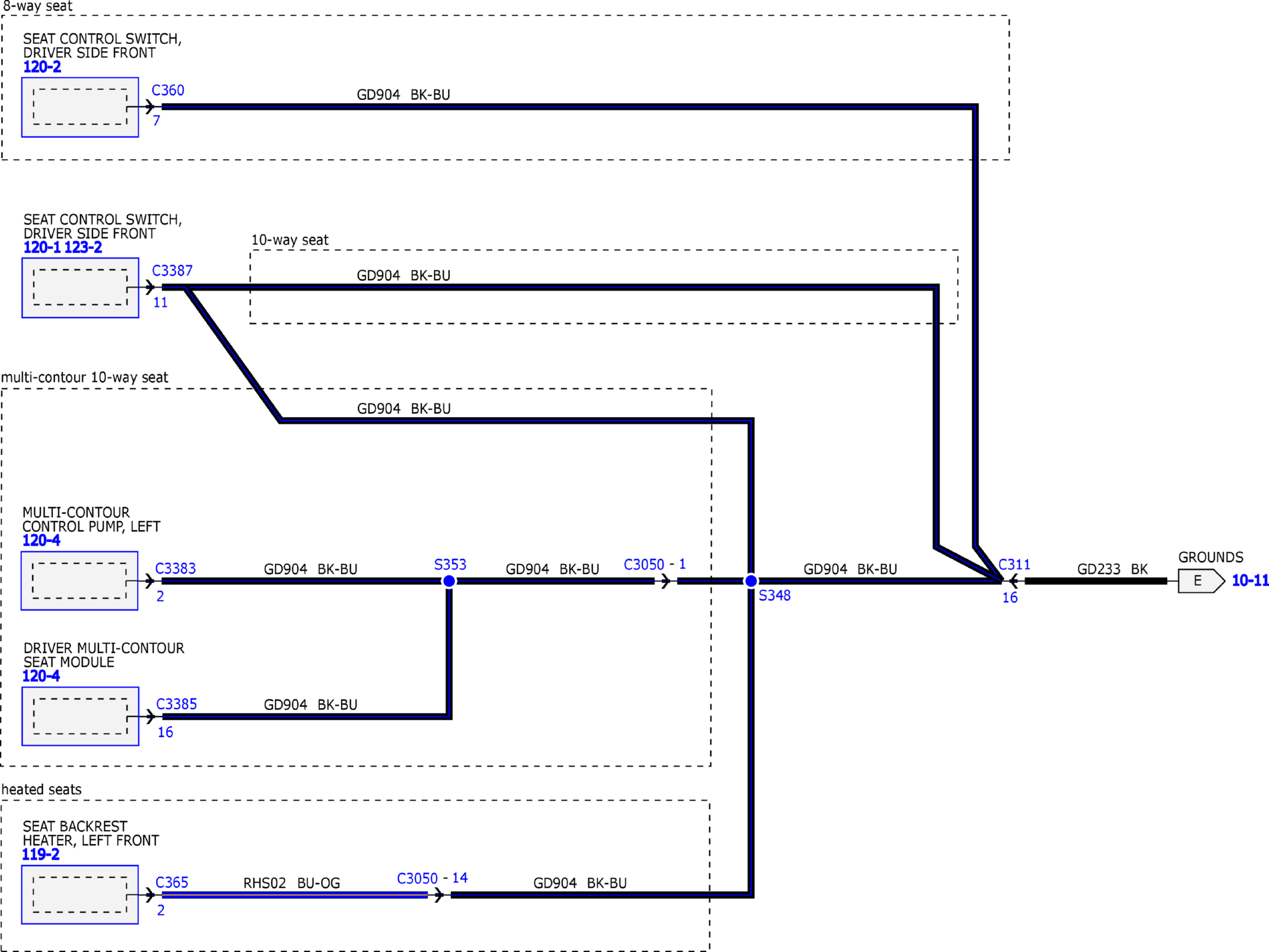

GFDW46281Courtesy of FORD MOTOR COMPANY

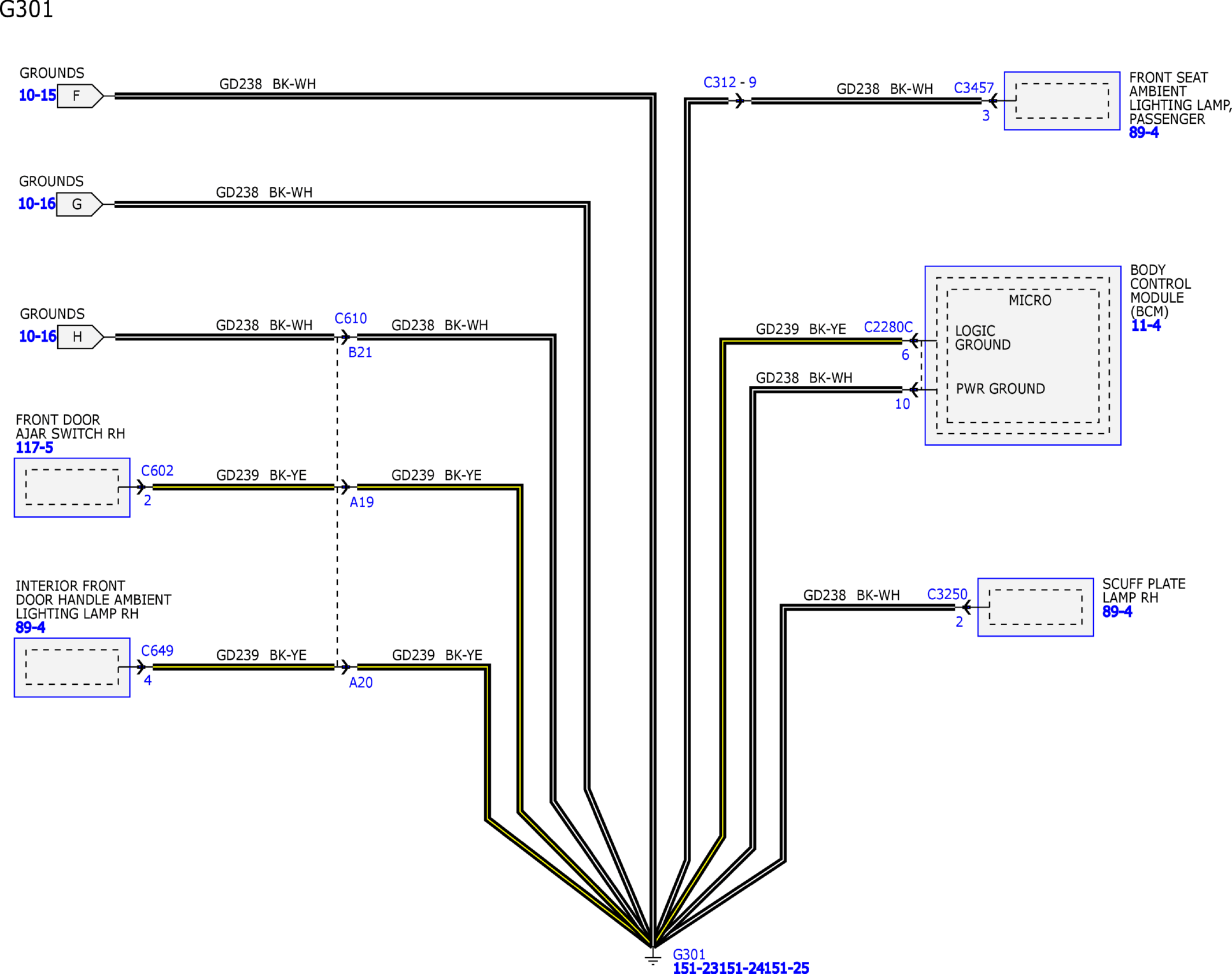

GFDW46282Courtesy of FORD MOTOR COMPANY

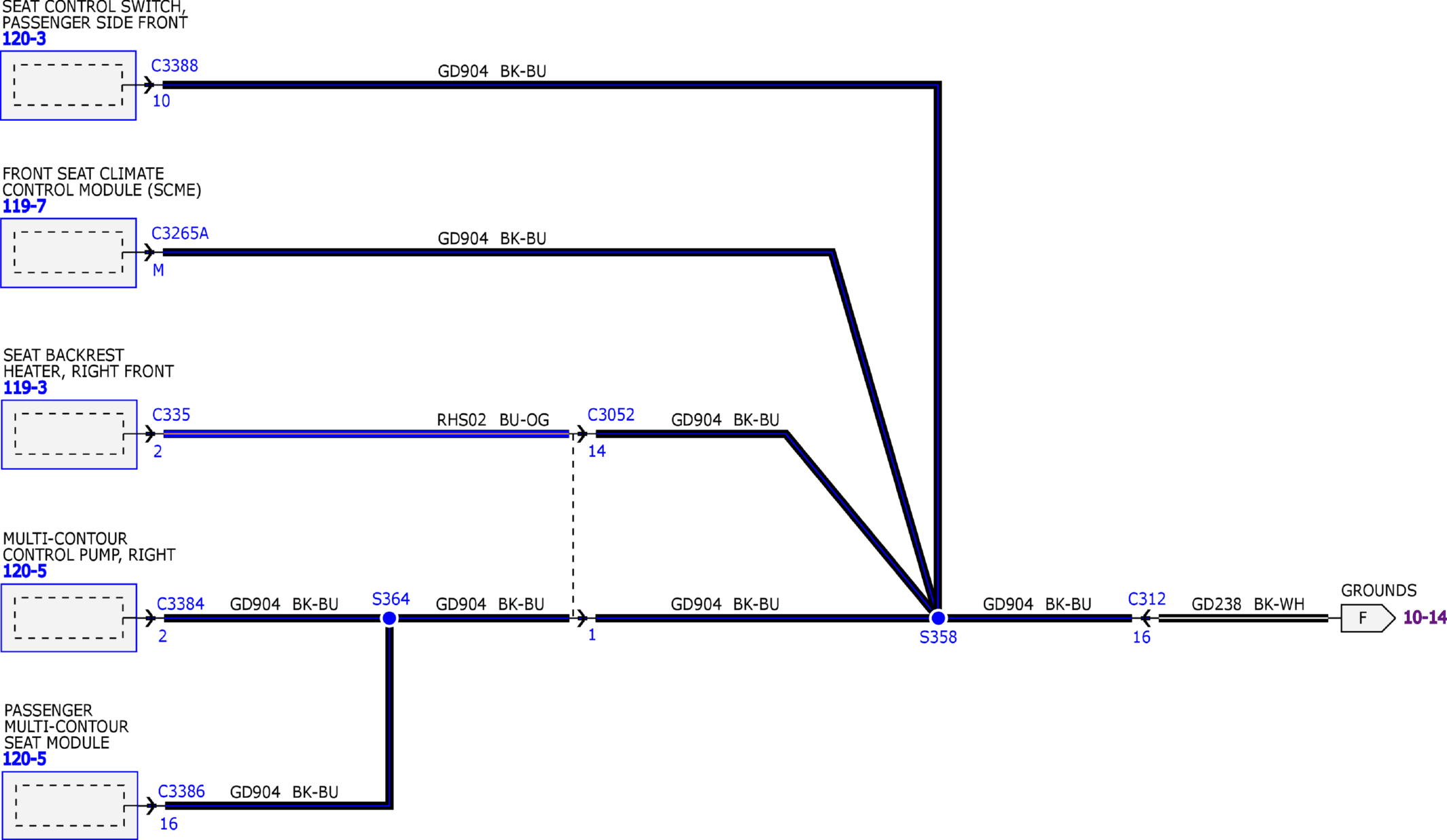

GFDW46283Courtesy of FORD MOTOR COMPANY

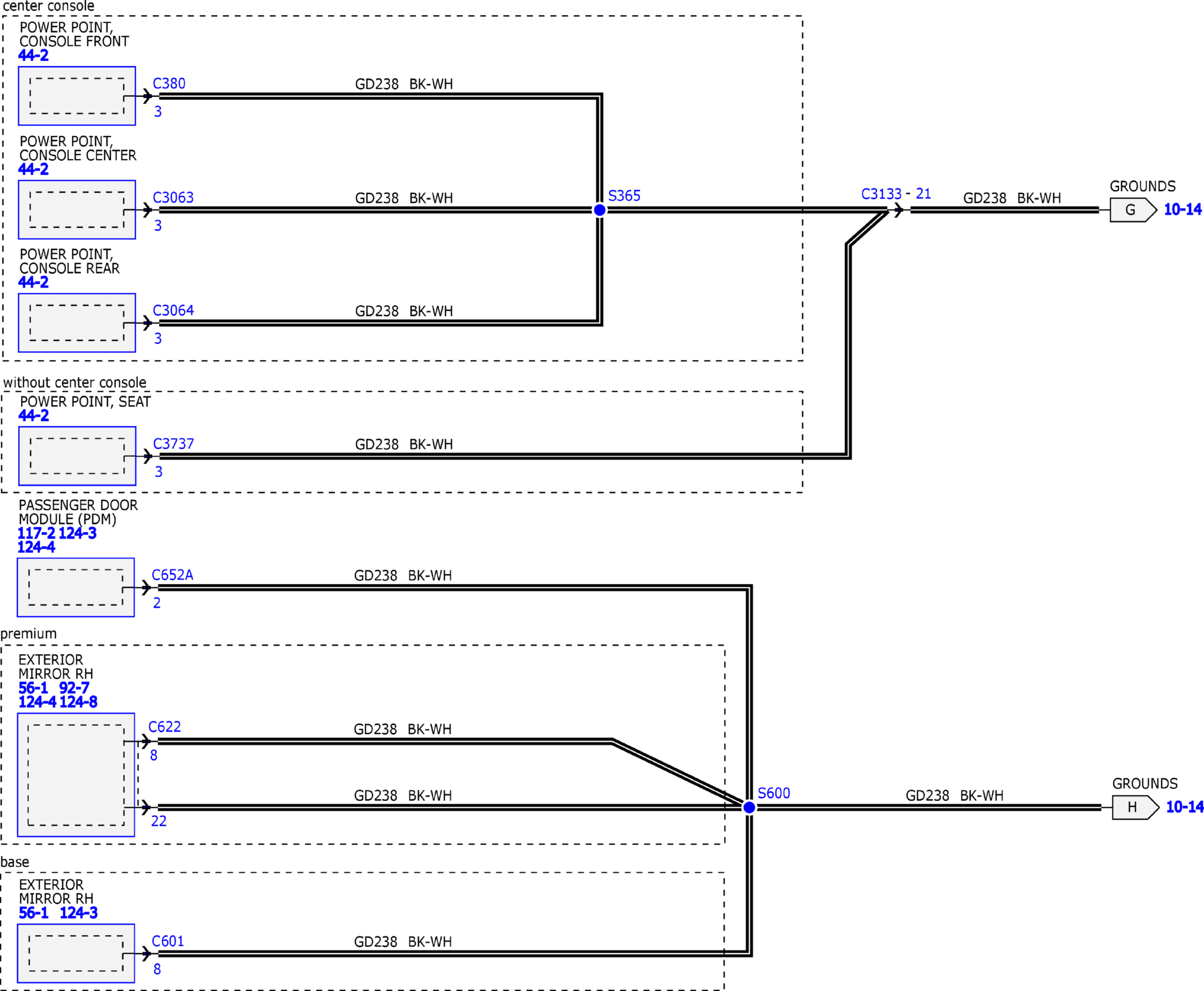

GFDW46284Courtesy of FORD MOTOR COMPANY

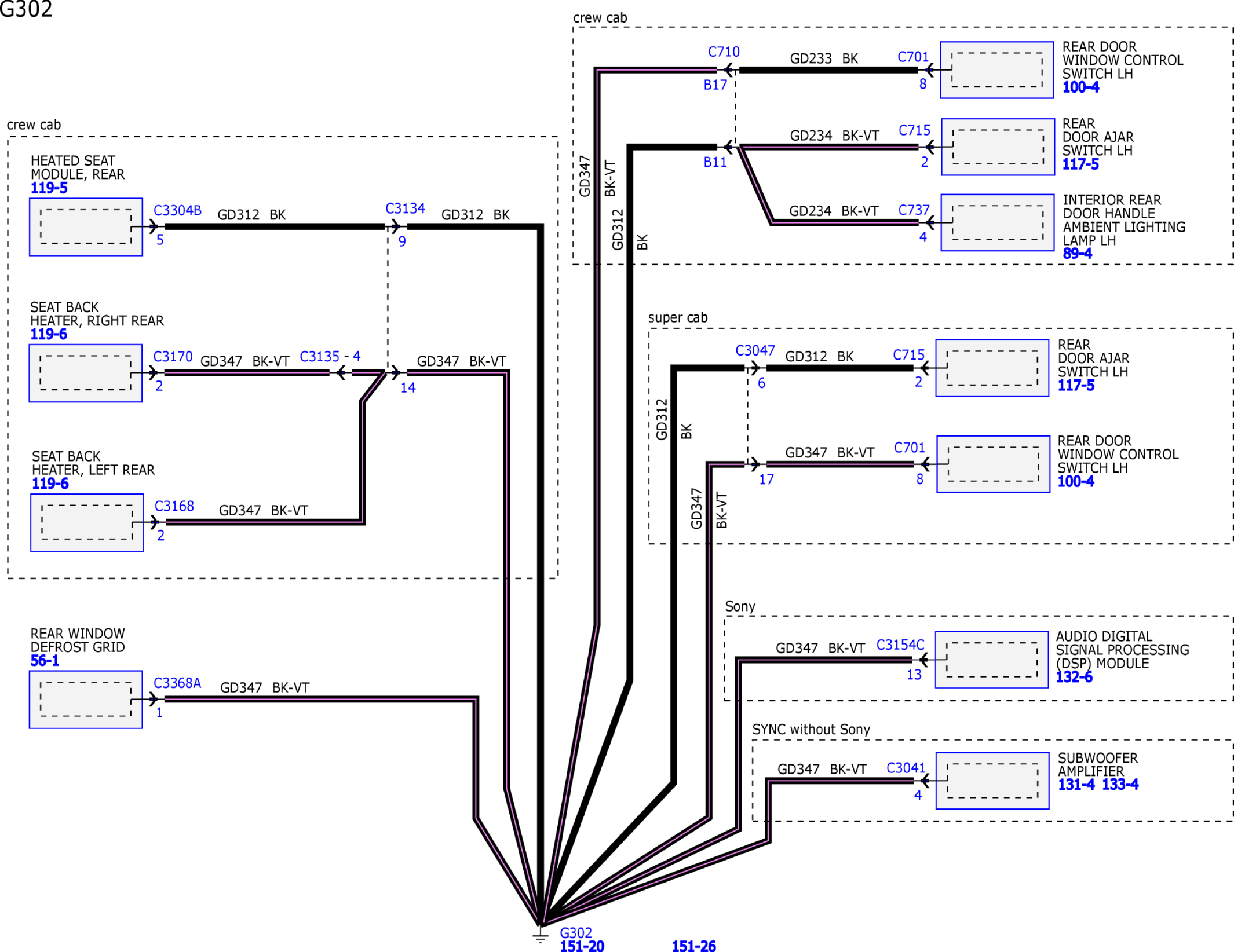

GFDW46285Courtesy of FORD MOTOR COMPANY

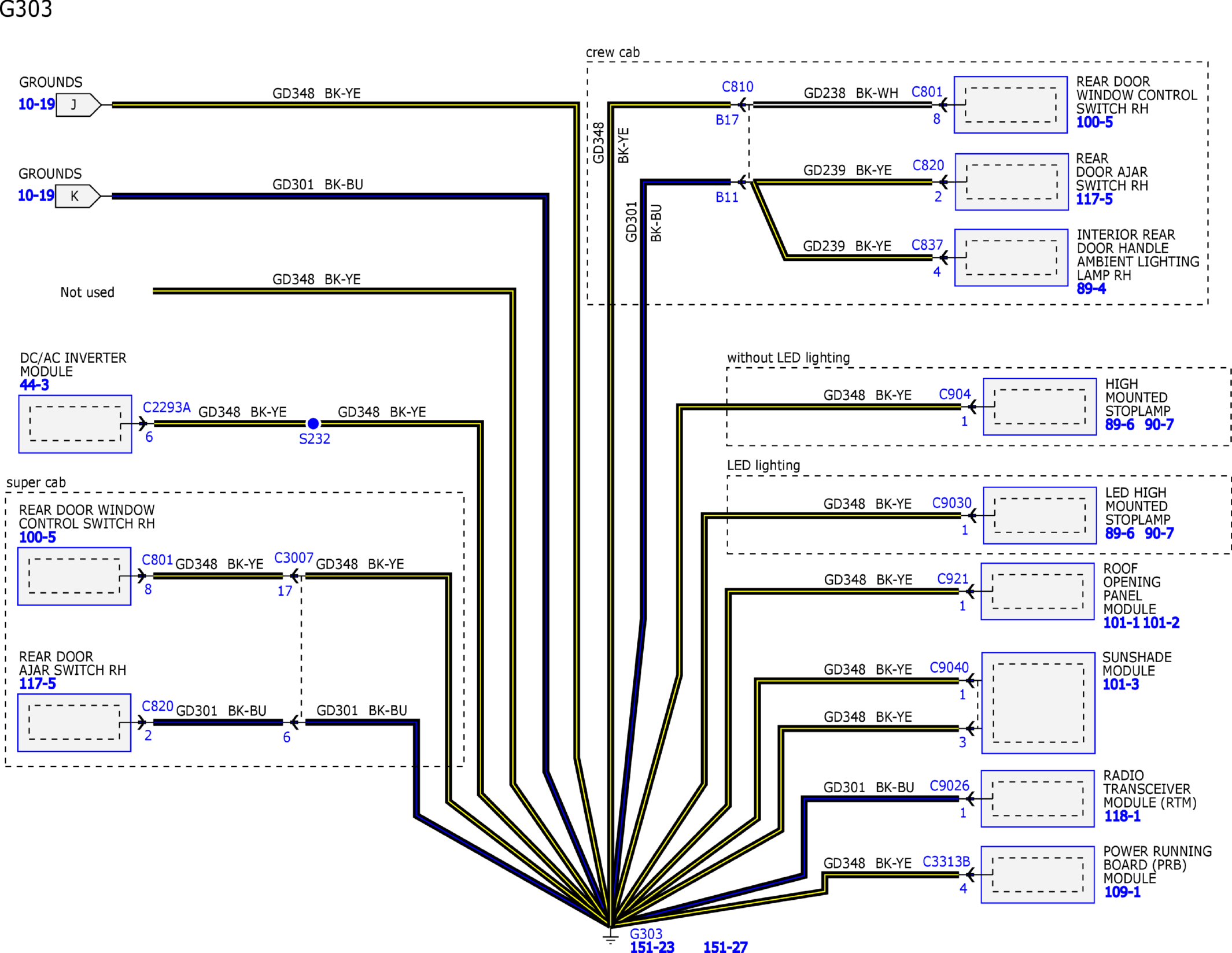

GFDW46286Courtesy of FORD MOTOR COMPANY

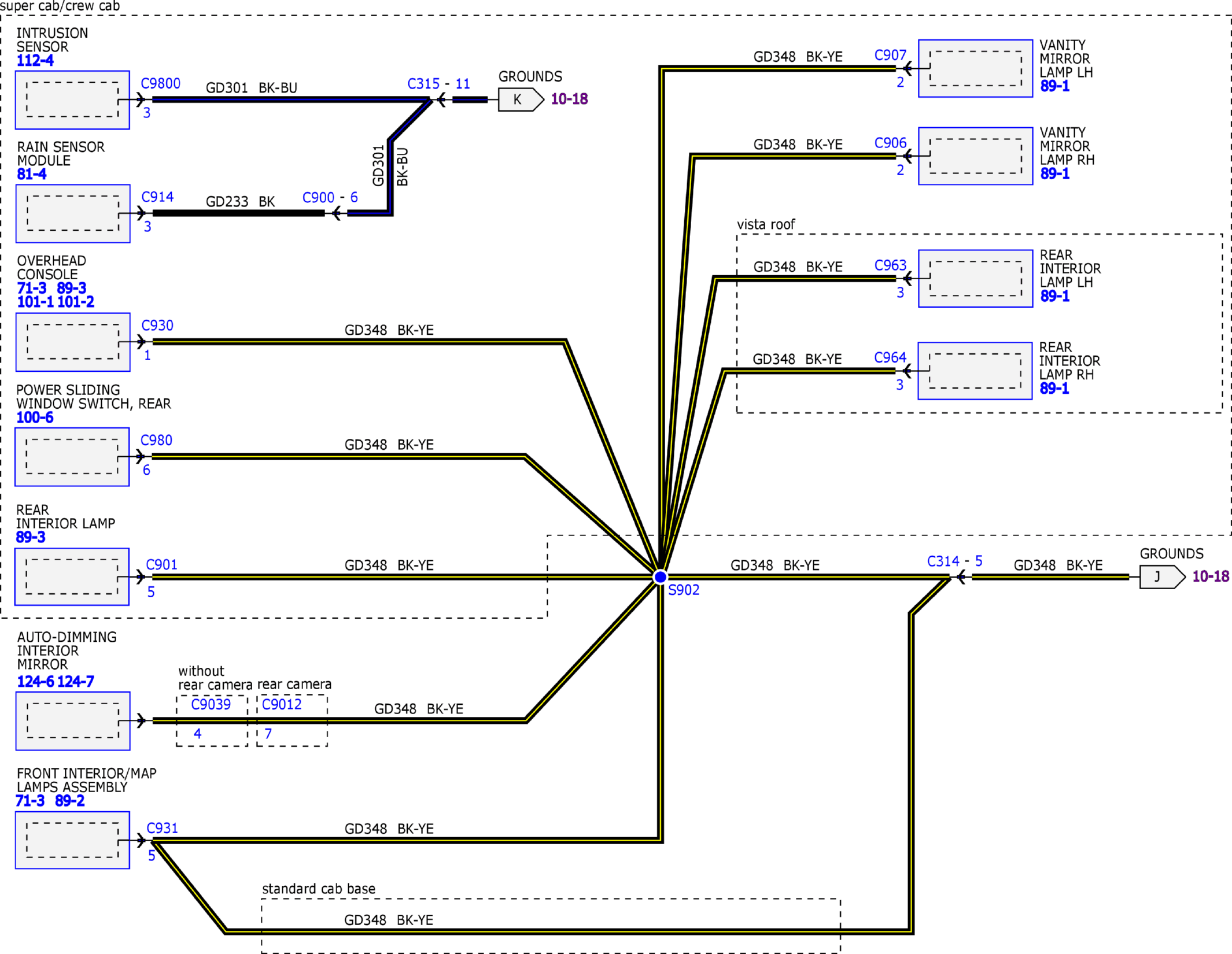

GFDW46287Courtesy of FORD MOTOR COMPANY

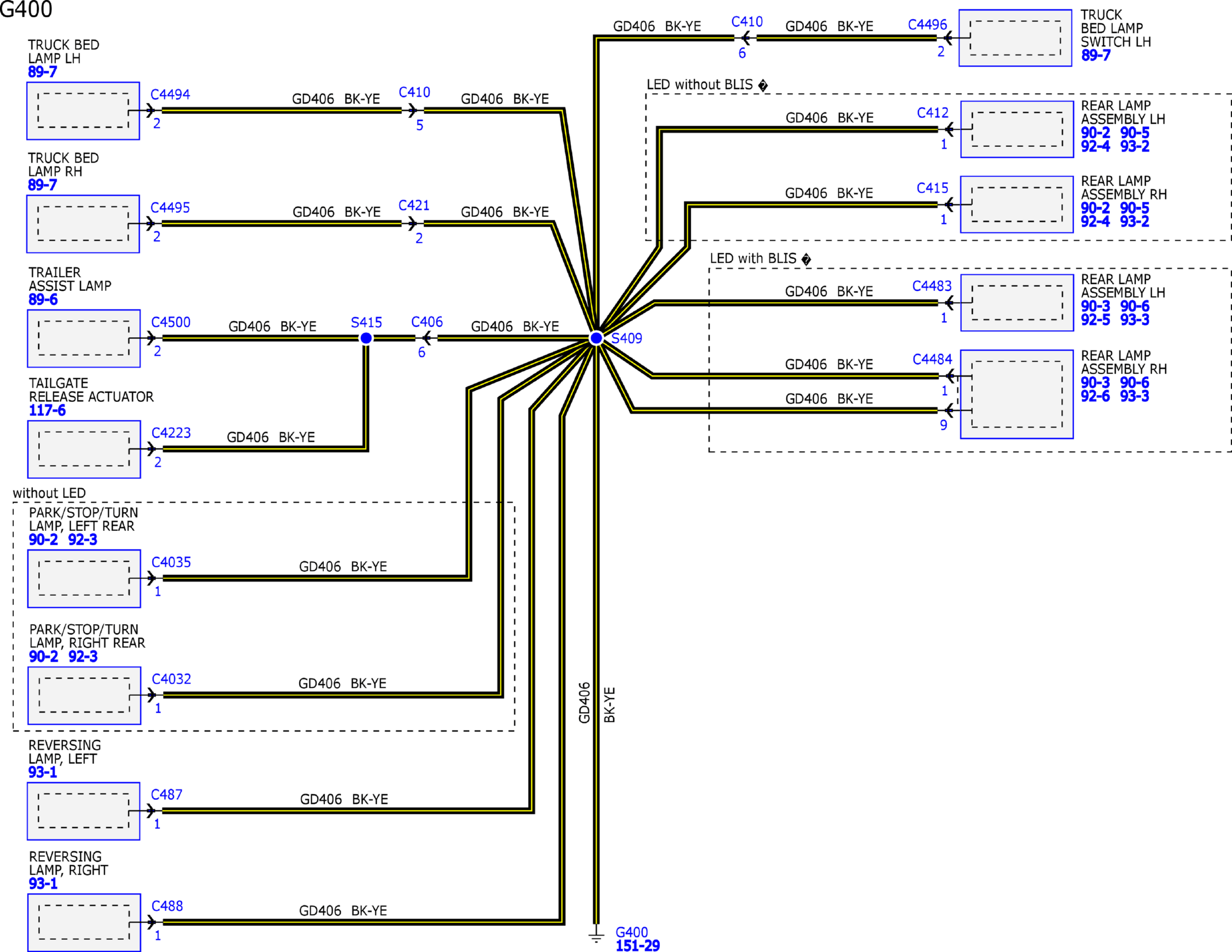

GFDW46288Courtesy of FORD MOTOR COMPANY

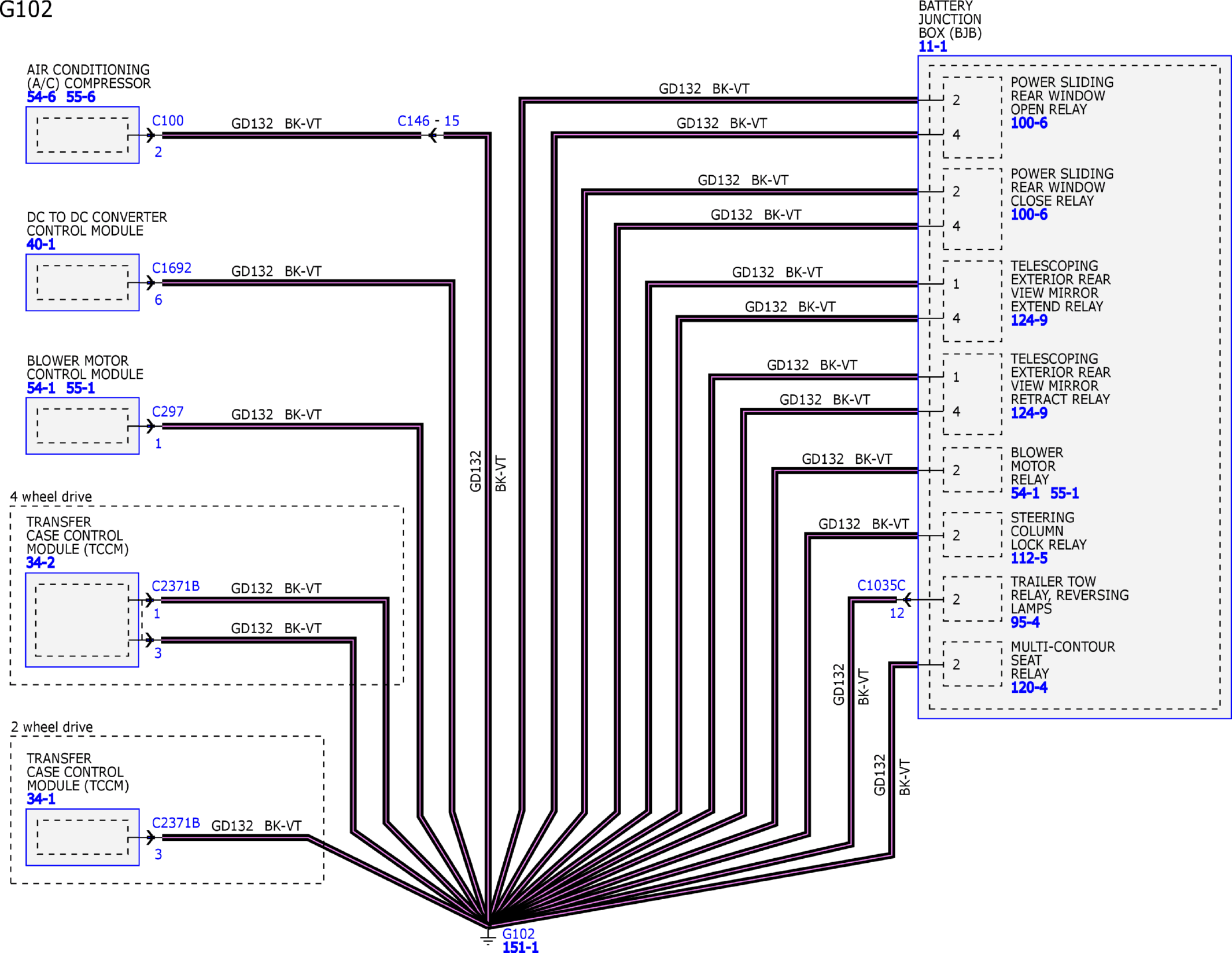

GFDW46289Courtesy of FORD MOTOR COMPANY

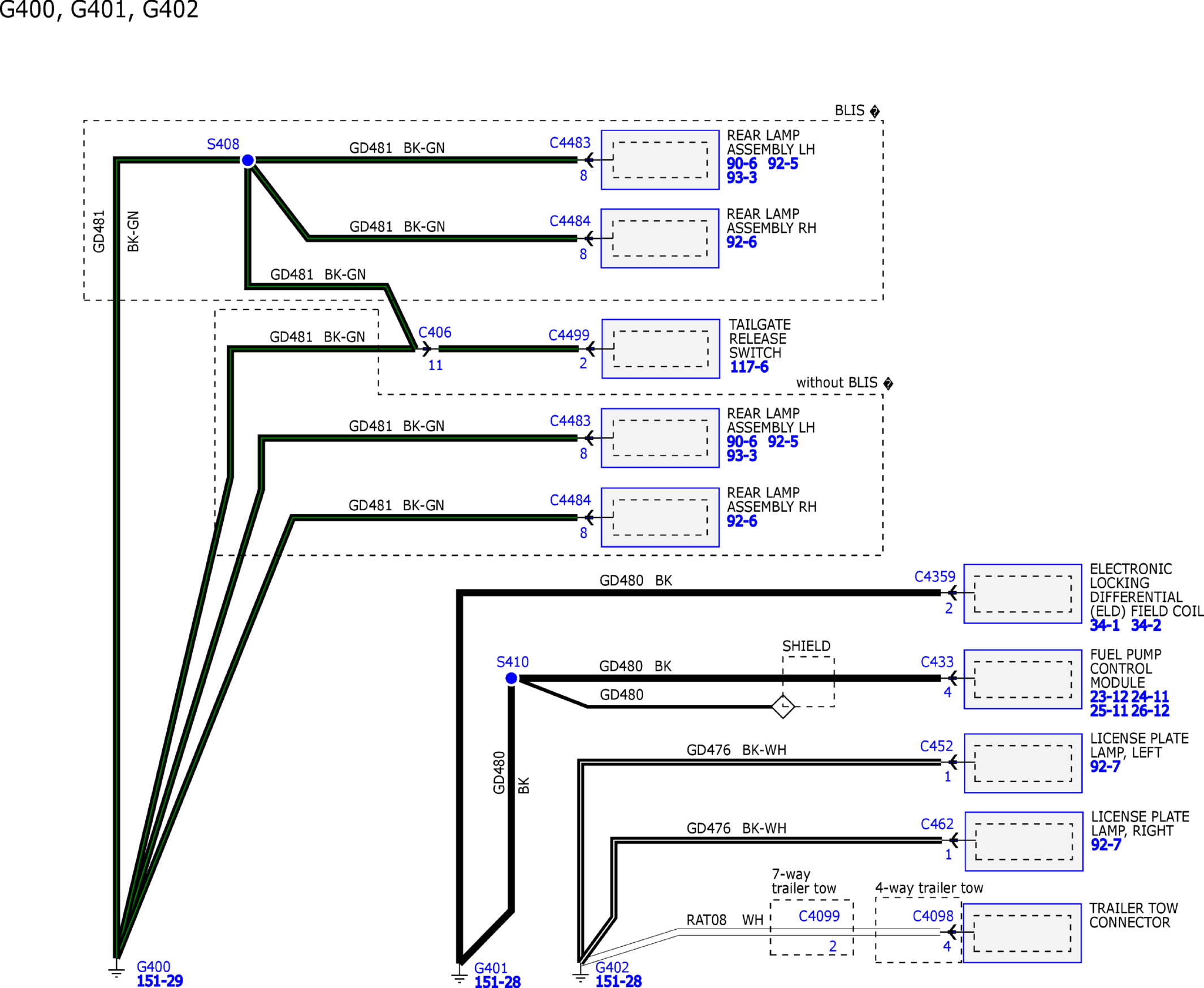

GFDW46290Courtesy of FORD MOTOR COMPANY

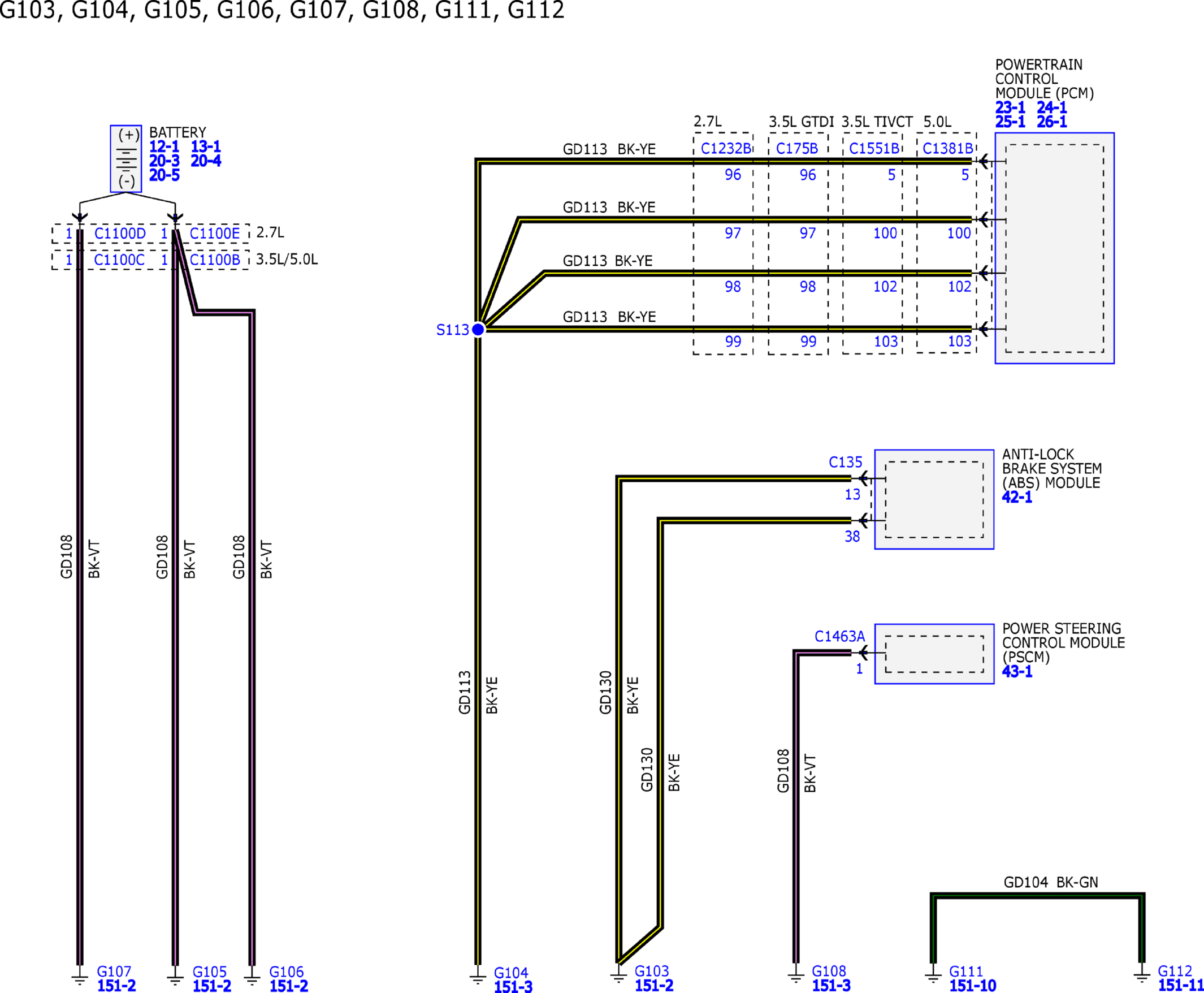

GFDW46291Courtesy of FORD MOTOR COMPANY

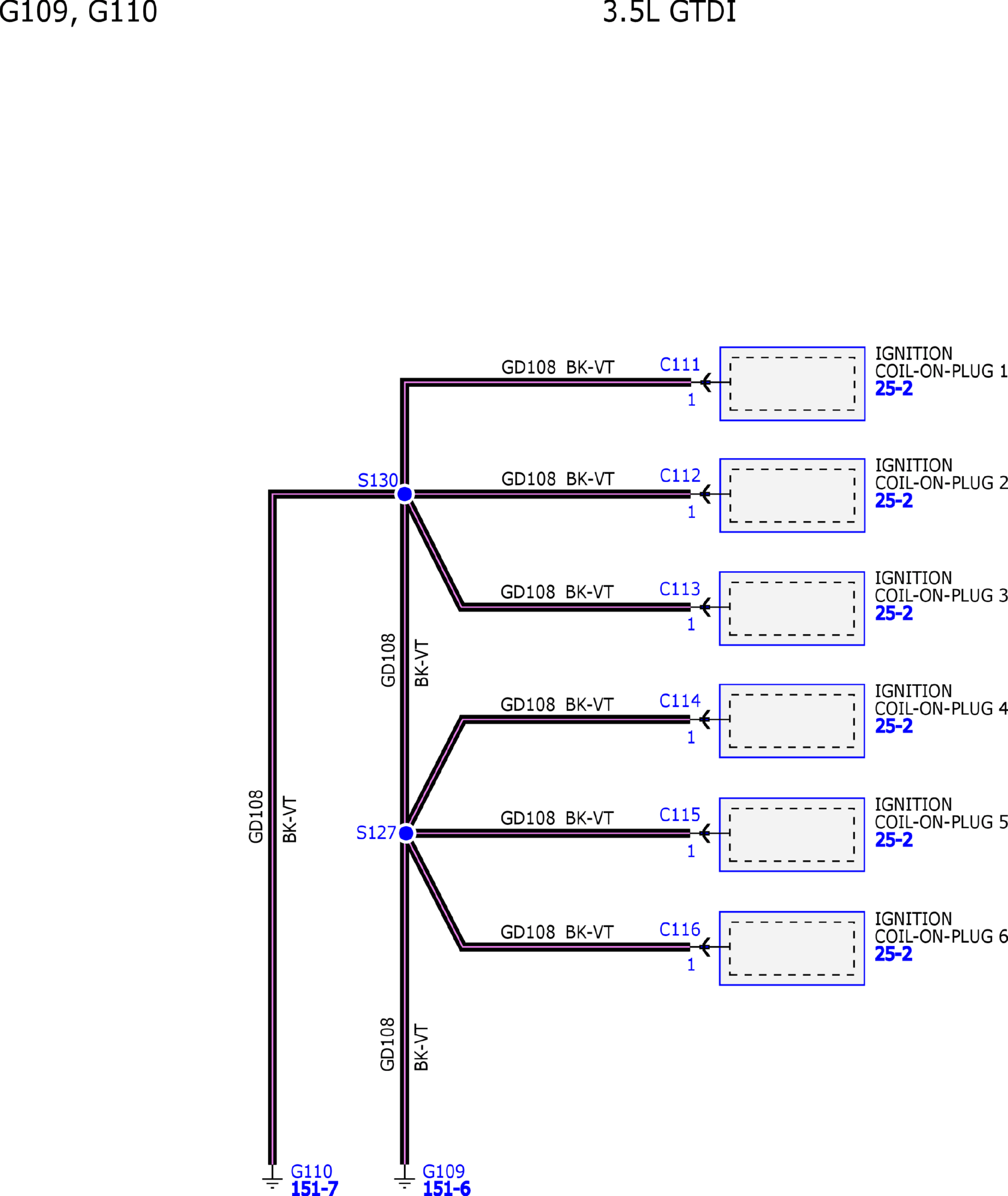

GFDW46292Courtesy of FORD MOTOR COMPANY

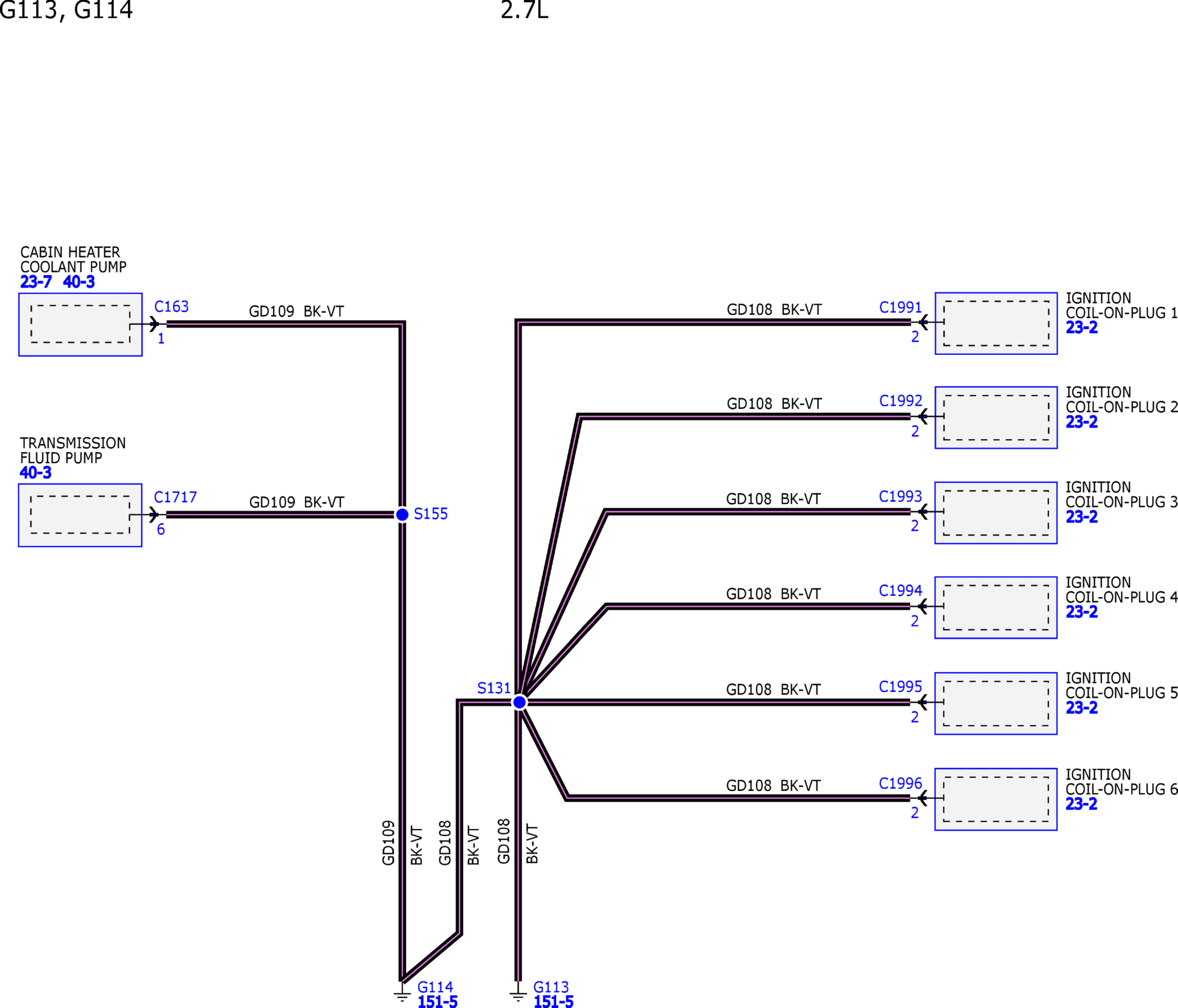

GFDW46293Courtesy of FORD MOTOR COMPANY

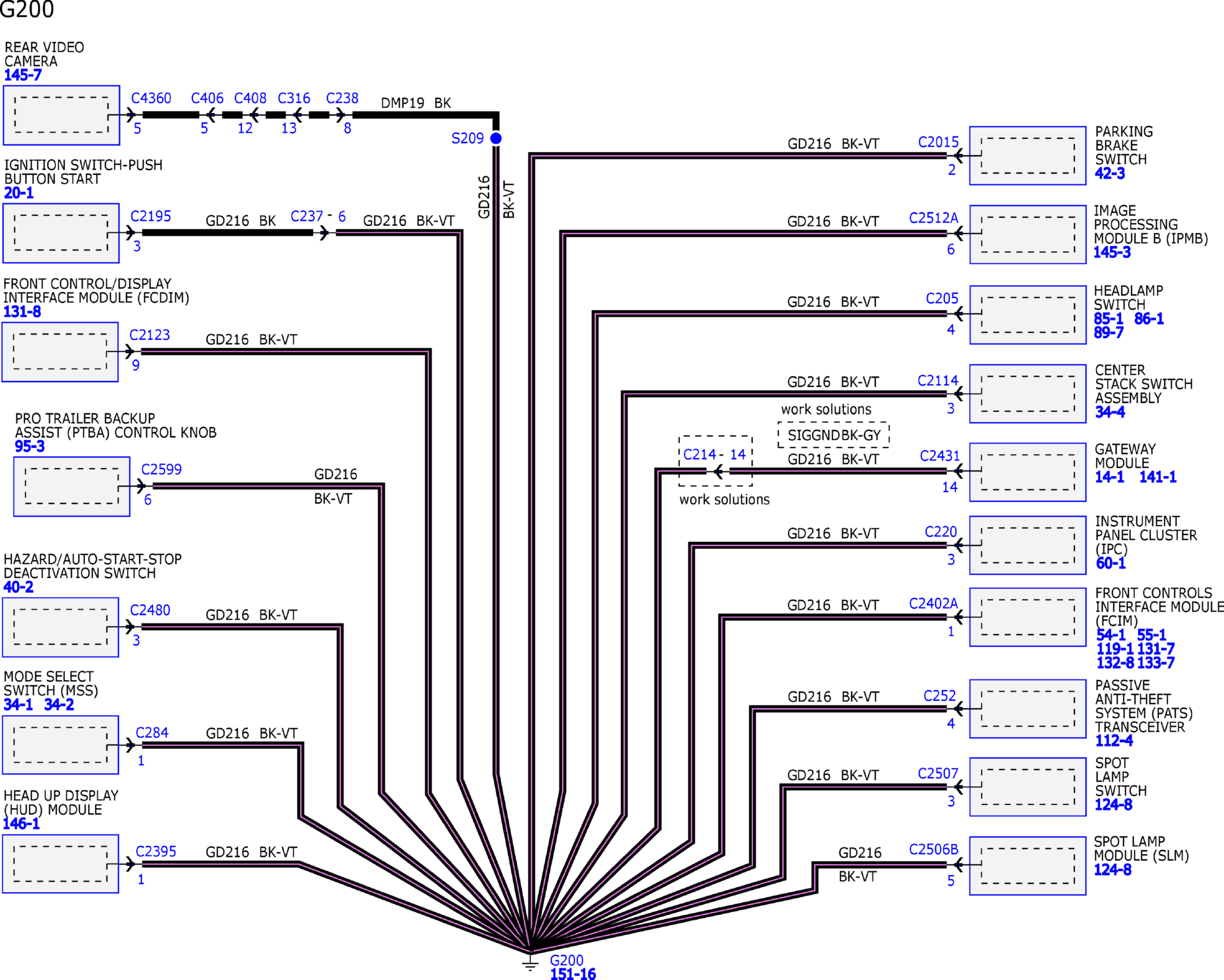

GFDW46294Courtesy of FORD MOTOR COMPANY

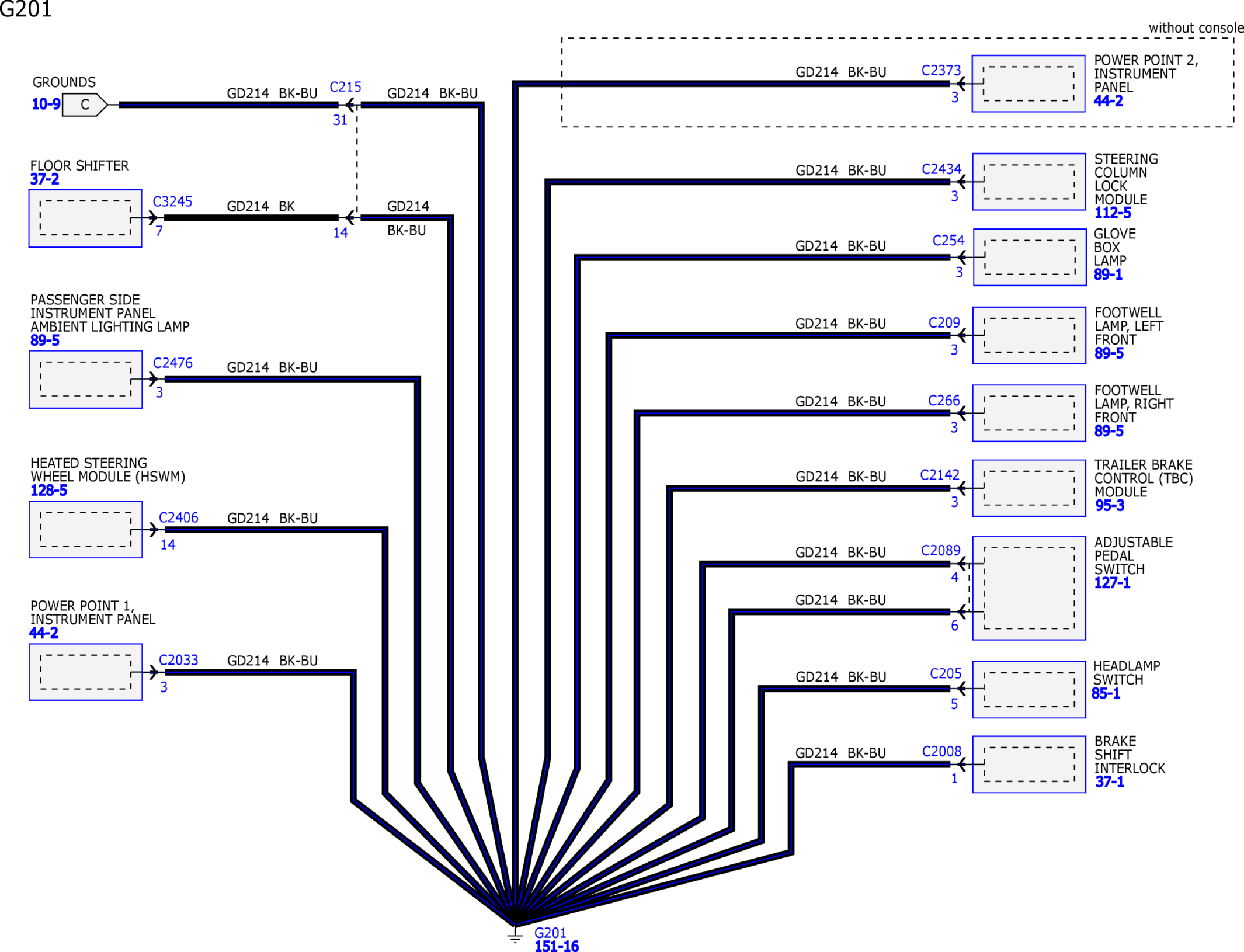

GFDW46295Courtesy of FORD MOTOR COMPANY

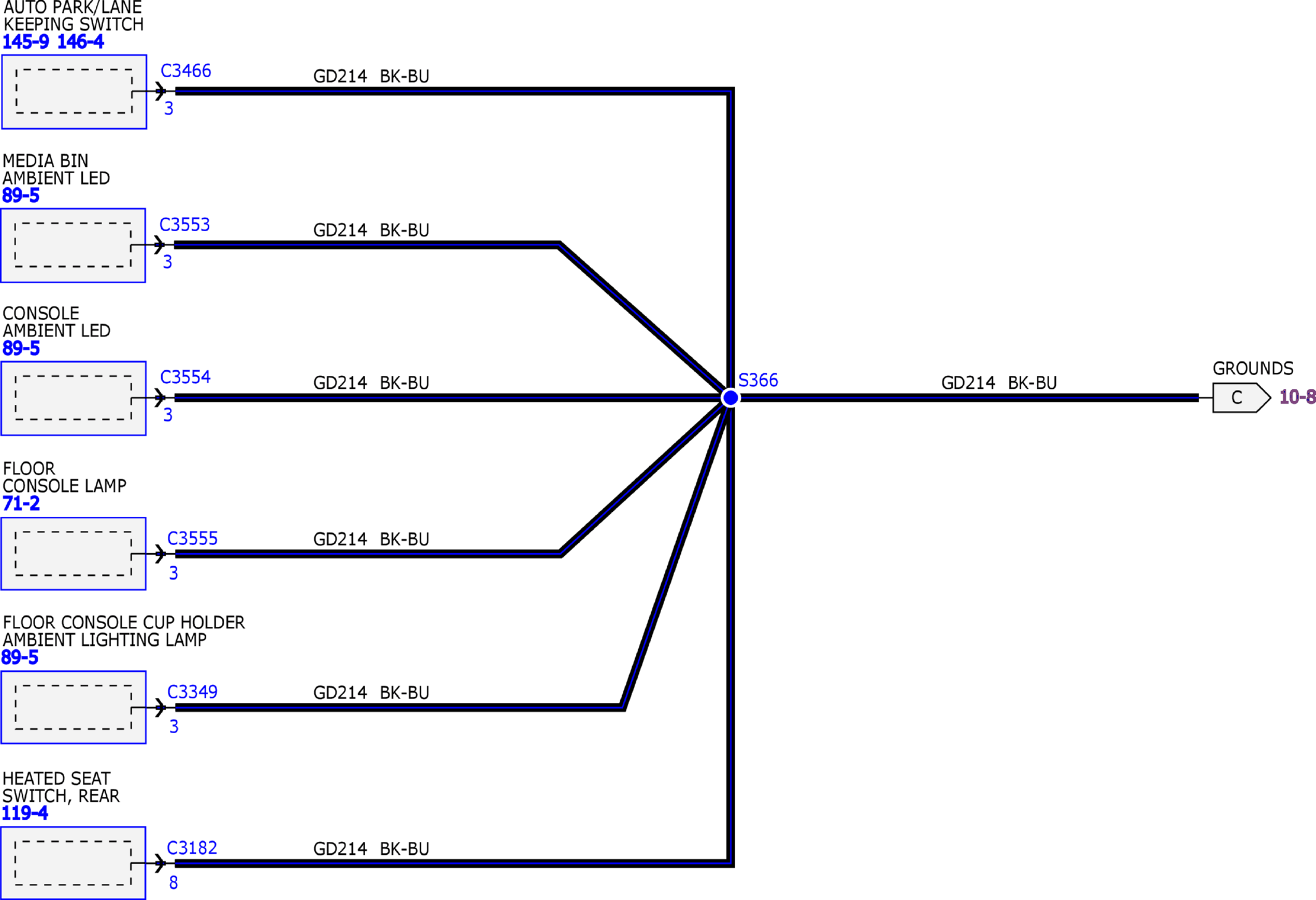

GFDW46296Courtesy of FORD MOTOR COMPANY

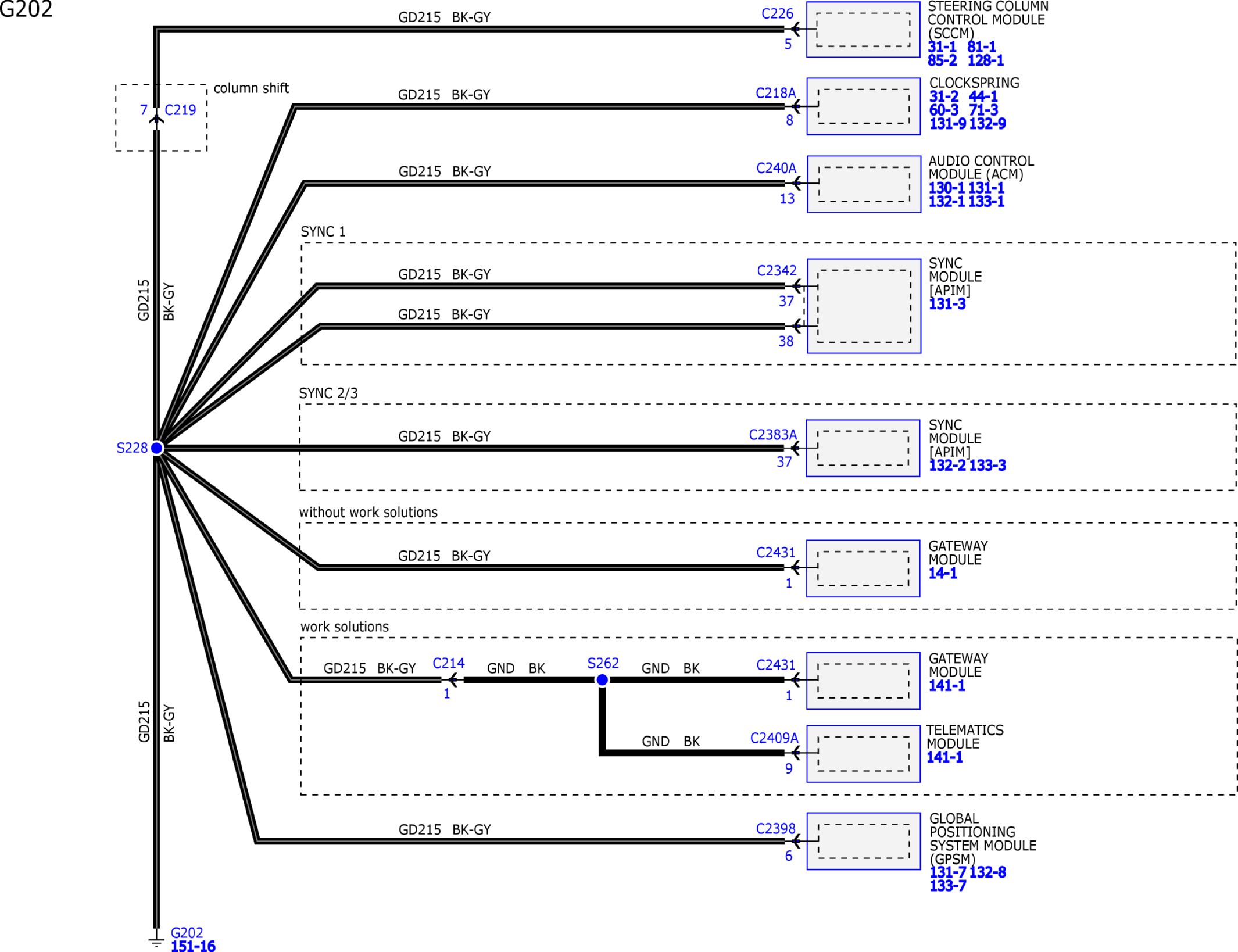

GFDW46297Courtesy of FORD MOTOR COMPANY
