Cruise Control Module (CCM): Installation

Cruise control module

1. 1.


   NOTE: Replace any damaged CCM ball studs.

   Inspect the CCM ball studs for damage.

Courtesy of FORD MOTOR COMPANY

1. 2.


   NOTE: Replace any damaged CCM grommets.

   Inspect the CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

1. 3.

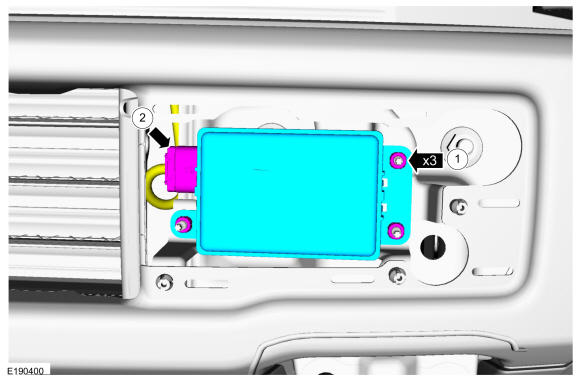

   Install the CCM.

   1. 1.

      Connect the CCM electrical connector.

   1. 2.


      NOTE: Do not seat the grommets, they will be seated when the nuts are installed and torqued.

      Position the CCM grommets on the ball studs.

Courtesy of FORD MOTOR COMPANY

1. 4.

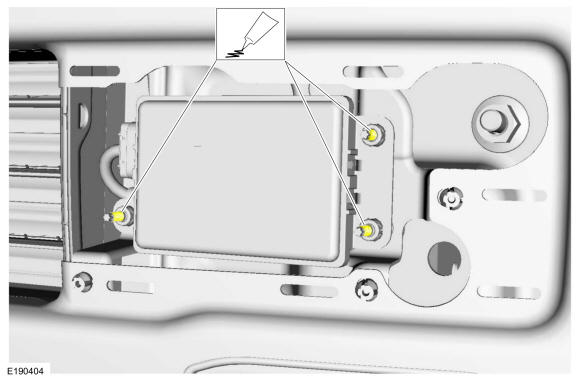

   Apply thread locker to the CCM ball stud threads.

   Material: Threadlock 262 / TA-26 (WSK-M2G351-A6)

Courtesy of FORD MOTOR COMPANY

1. 5.

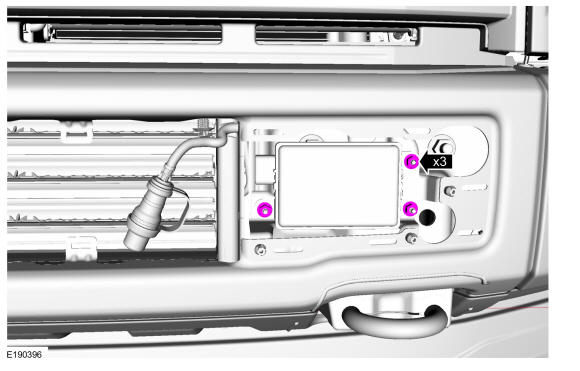

   Install the CCM nuts.

   Torque: 9 lb.in (1 Nm)

Courtesy of FORD MOTOR COMPANY

1. 6.


   NOTE: This step is only necessary when installing a new component.

   Using a diagnostic scan tool, complete the PMI process for the CCM following the on-screen instructions.

1. 7.

   Align the CCM. Refer to: Cruise Control Radar Alignment .

1. 8.

   Install the front bumper trim panel.

Courtesy of FORD MOTOR COMPANY

Cruise control module bracket

1. 9.

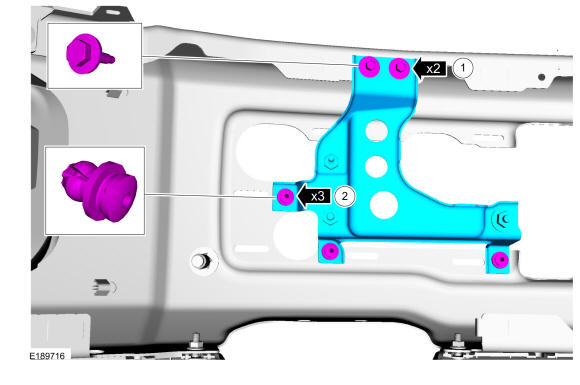

   Install the CCM bracket.

   1. 1.

      Install the CCM bracket bolts.

      Torque: 42 lb.in (4.8 Nm)

   1. 2.

      Install the CCM bracket scrivets.

Courtesy of FORD MOTOR COMPANY

1. 10.

   Install the front bumper. Refer to: Front Bumper .
