Front Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Remove the front bumper cover. Refer to: Front Bumper Cover .

2.

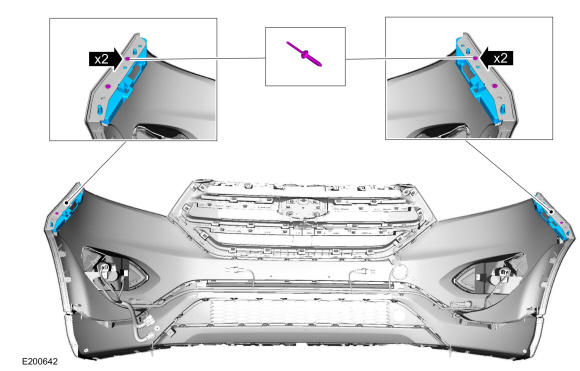

Remove the rivets and the front bumper brackets.

Courtesy of FORD MOTOR COMPANY

3.

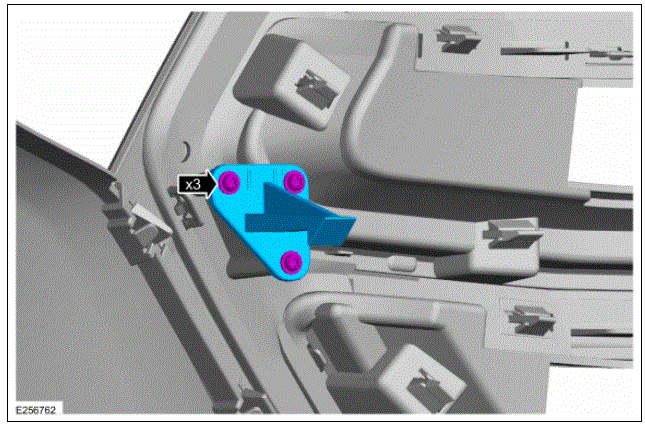

Remove the screws and the air deflectors.

Courtesy of FORD MOTOR COMPANY

4.

Remove the front active park assist sensors.
- 1.

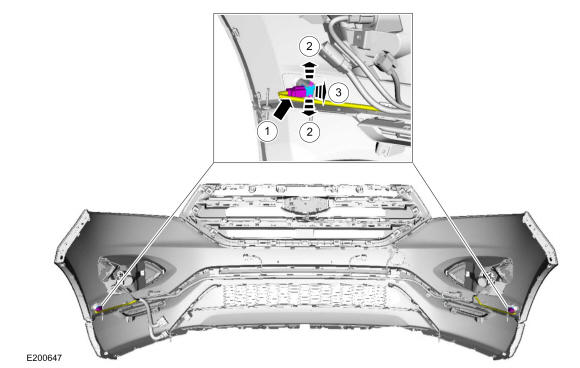

  Disconnect the active park assist sensor electrical connectors.
- 2.

  Release the tabs.
- 3.

  Remove the front active park assist sensors.

Courtesy of FORD MOTOR COMPANY

5.

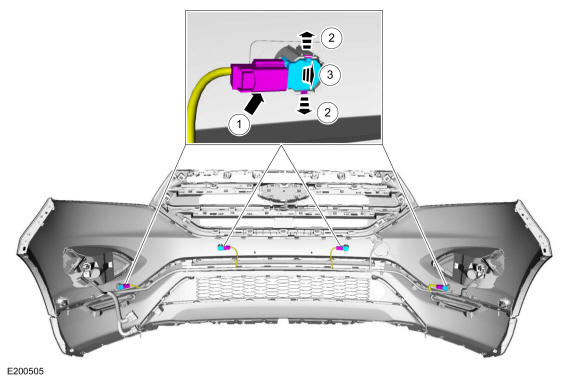

Remove the front parking aid sensors.
- 1.

  Disconnect the front parking aid sensor electrical connectors.
- 2.

  Release the tabs.
- 3.

  Remove the front parking aid sensors.

Courtesy of FORD MOTOR COMPANY

6.

Disconnect the fog lamp assembly electrical connectors.

Courtesy of FORD MOTOR COMPANY

7.

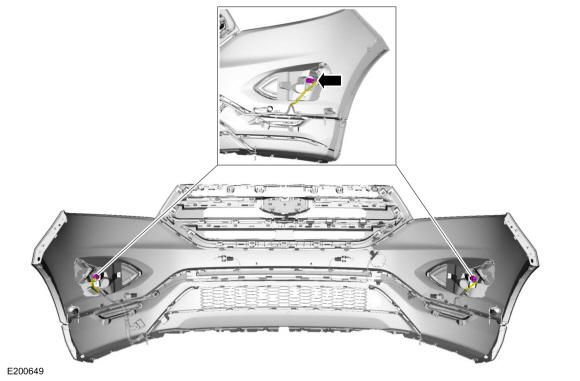

If equipped. Disconnect the front camera electrical connector and the washer hose.

Courtesy of FORD MOTOR COMPANY

8.

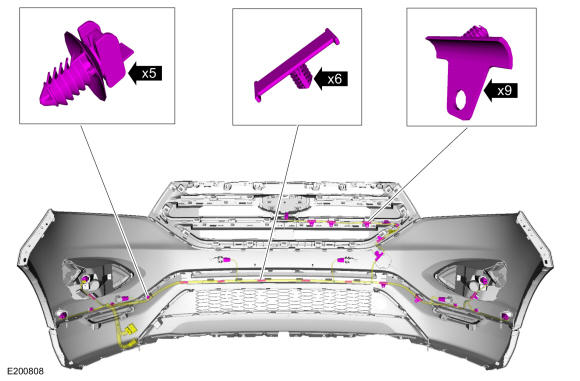

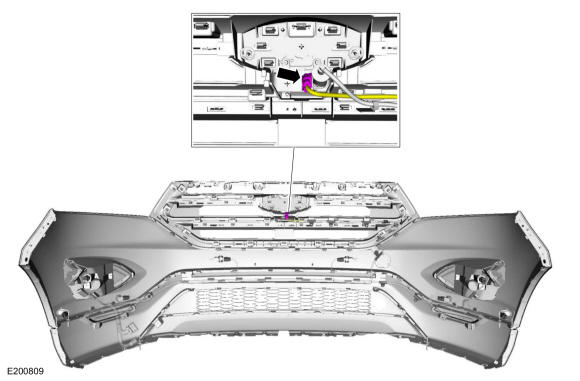

Separate the harness guides and remove the front bumper cover harness.

Courtesy of FORD MOTOR COMPANY

Vehicles with base trim package

9.

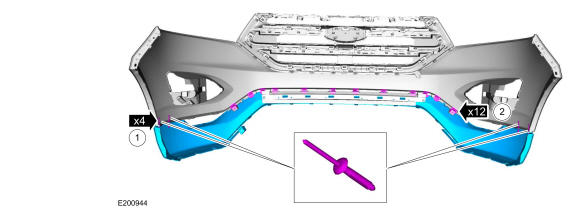

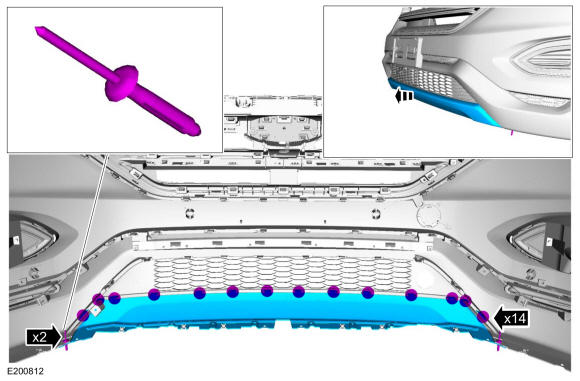

Remove the rivets, separate the tabs and remove the lower front bumper cover panel.

Courtesy of FORD MOTOR COMPANY

Vehicles with premium trim package

10.

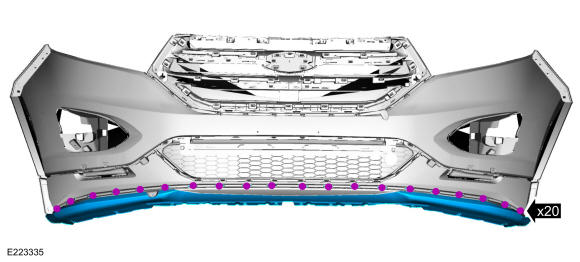

Separate the tabs and remove the lower front bumper cover panel.

Courtesy of FORD MOTOR COMPANY

All vehicles

11.

NOTE: On both sides.

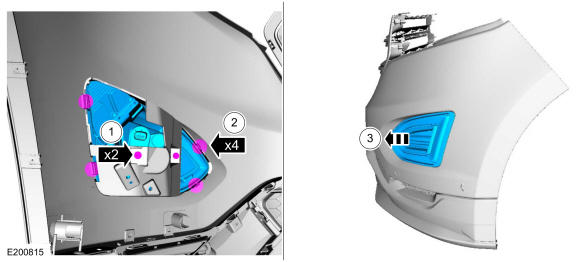

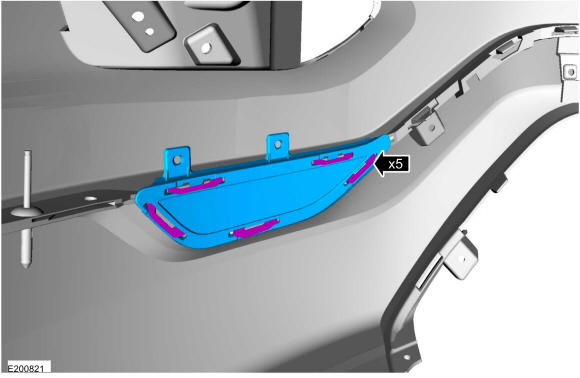

Remove the fog lamp bezel.
- 1.

  Remove the screws.
- 2.

  Release the tabs.
- 3.

  Separate the fog lamp bezel from the upper front bumper cover.

Courtesy of FORD MOTOR COMPANY

Vehicles with base trim package

12.

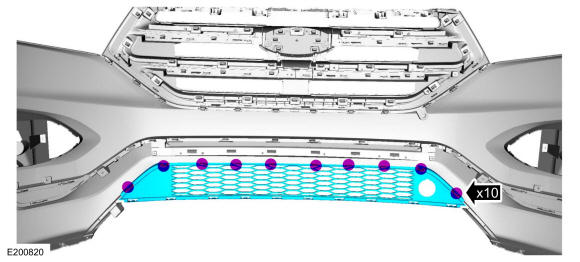

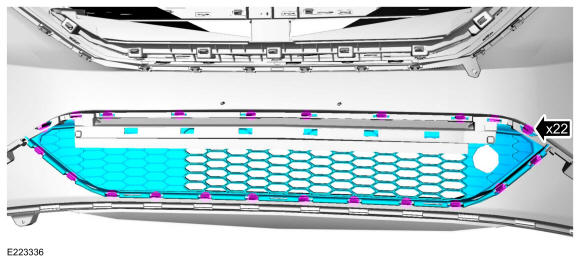

Release the tabs and remove the lower radiator grille.

Courtesy of FORD MOTOR COMPANY

Vehicles with premium trim package

13.

Release the tabs and remove the lower radiator grille.

Courtesy of FORD MOTOR COMPANY

All vehicles

14.

NOTE: On both sides.

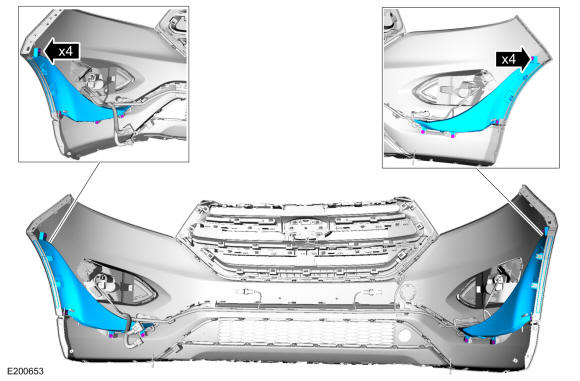

Release the tabs and remove the front bumper insert.

Courtesy of FORD MOTOR COMPANY

15.

NOTE: Base trim package shown in illustration, premium trim package is similar.

Remove the center bumper cover panel.
- Remove the rivets.
- Release the tabs.

Courtesy of FORD MOTOR COMPANY

16.

NOTE: On both sides.

Remove the screws and the radiator grill assembly to grill reinforcement fixing.

Courtesy of FORD MOTOR CO.

17.

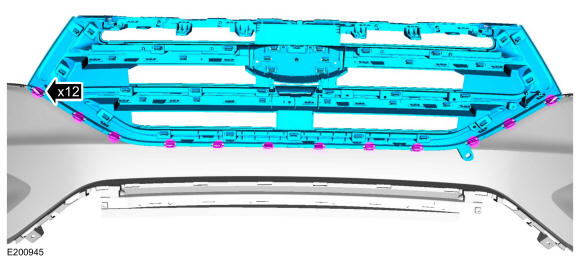

Release the tabs and remove the upper radiator grille.

Courtesy of FORD MOTOR COMPANY
