Liftgate Alignment

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Check liftgate-to-body dimensions. REFER to: Body and Frame .

Adjustment

All alignments

  1. 1.

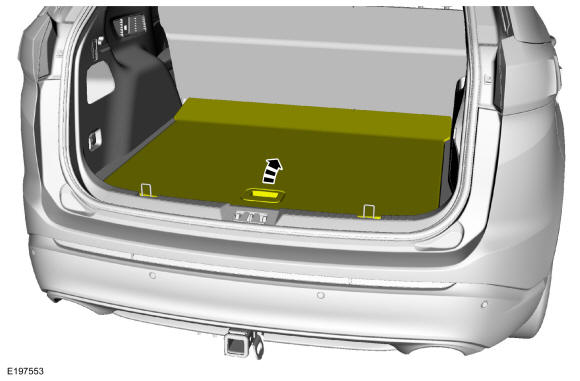

    Position aside the load compartment luggage cover.
GFD17582Courtesy of FORD MOTOR COMPANY

  1. 2.

    1. 1.

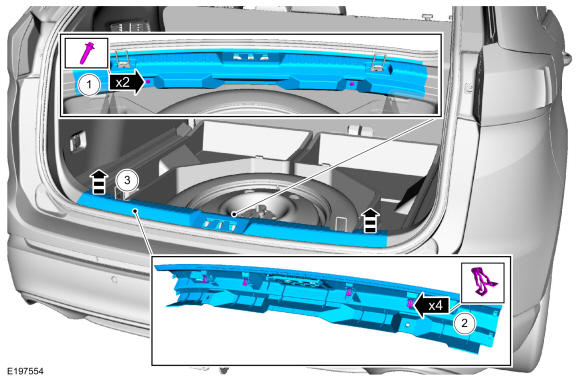

      Remove the bolts.

      Torque: 80 lb.in (9 Nm)

    1. 2.

      Remove the retainers.

    1. 3.

      Remove the liftgate opening trim panel.
GFD17583Courtesy of FORD MOTOR COMPANY

  1. 3.

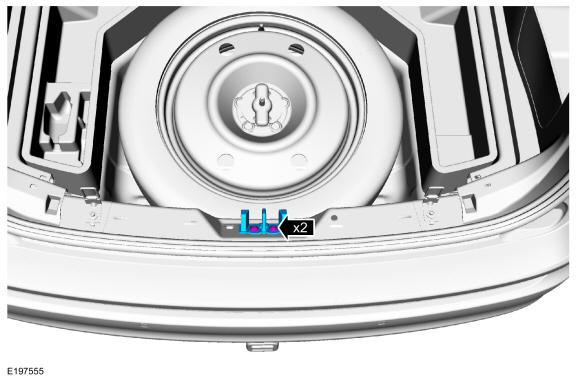

    Remove the liftgate striker.

    Torque: 177 lb.in (20 Nm)

GFD17584Courtesy of FORD MOTOR COMPANY

Liftgate left and right, up and down alignment

  1. 4.

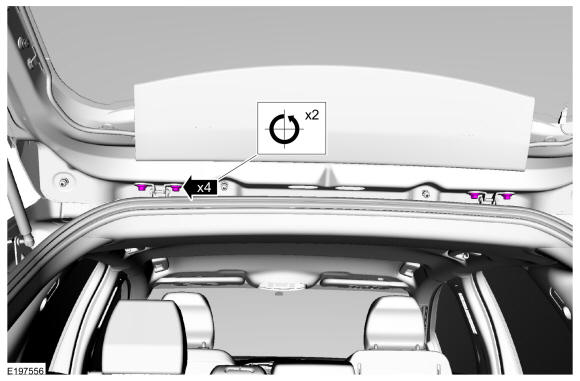

    Loosen the bolts.

    Loosen: 2 turn(s)

GFD17585Courtesy of FORD MOTOR COMPANY

  1. 5.

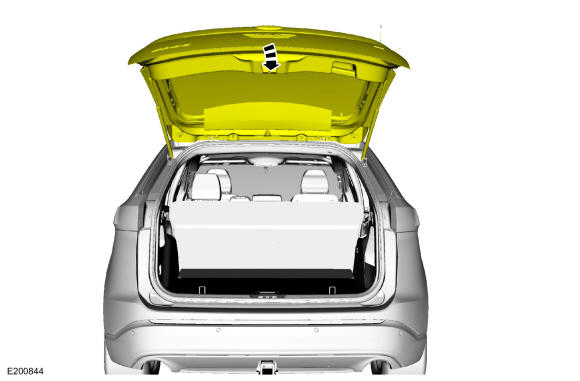

    Carefully close the liftgate.
GFD17586Courtesy of FORD MOTOR COMPANY

  1. 6.

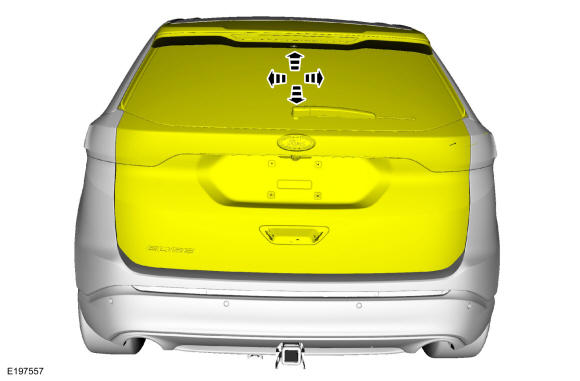

    Adjust the liftgate to specification. REFER to: Body and Frame .
GFD17587Courtesy of FORD MOTOR COMPANY

  1. 7.

    Carefully open the liftgate.
GFD17588Courtesy of FORD MOTOR COMPANY

  1. 8.

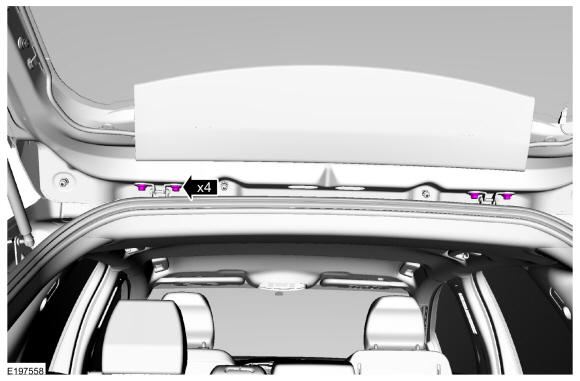

    Tighten the bolts.

    Torque: 22 lb.ft (30 Nm)

GFD17589Courtesy of FORD MOTOR COMPANY

Liftgate in and out alignment

  1. 9.

    Lower the headliner. REFER to: Headliner - Lowering .

  1. 10.

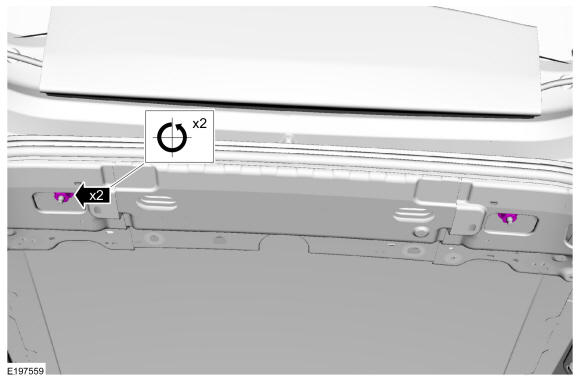

    Loosen the nuts.

    Loosen: 2 turn(s)

GFD17590Courtesy of FORD MOTOR COMPANY

  1. 11.

    NOTE: Nominal overslam bumpers have a small lip and should be adjusted flush with the sheet metal surface.

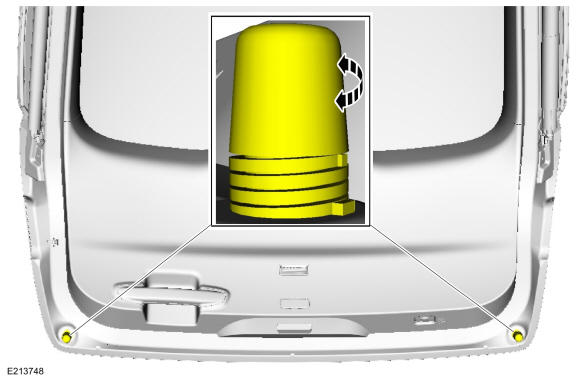

    Adjust the nominal overslam bumpers.

GFD17591Courtesy of FORD MOTOR COMPANY

  1. 12.

    Carefully close the liftgate.
GFD17586Courtesy of FORD MOTOR COMPANY

  1. 13.

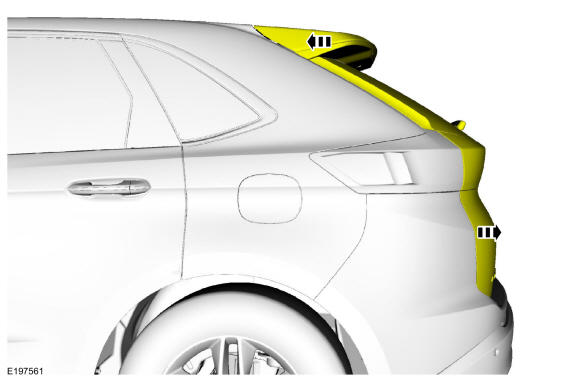

    Adjust the liftgate to specification. REFER to: Body and Frame .
GFD17592Courtesy of FORD MOTOR COMPANY

  1. 14.

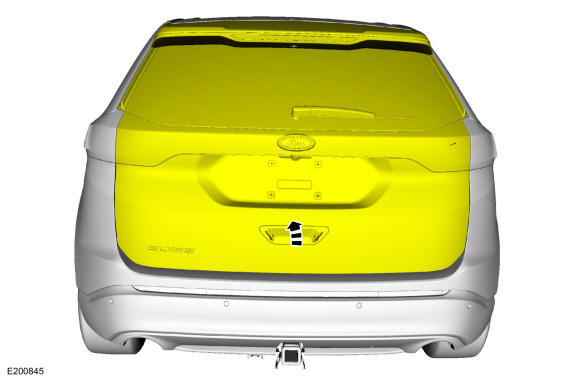

    Carefully open the liftgate.
GFD17588Courtesy of FORD MOTOR COMPANY

  1. 15.

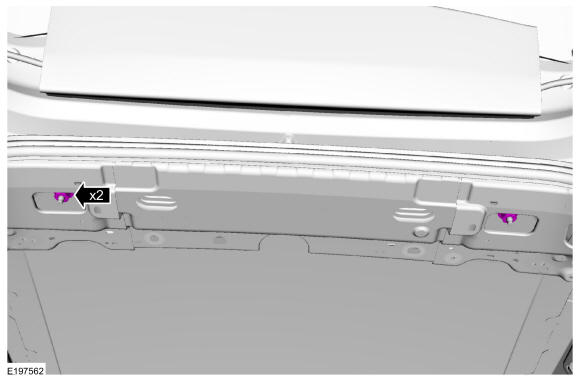

    Tighten the nuts.

    Torque: 46 lb.ft (62.5 Nm)

GFD17593Courtesy of FORD MOTOR COMPANY

All alignments

  1. 16.

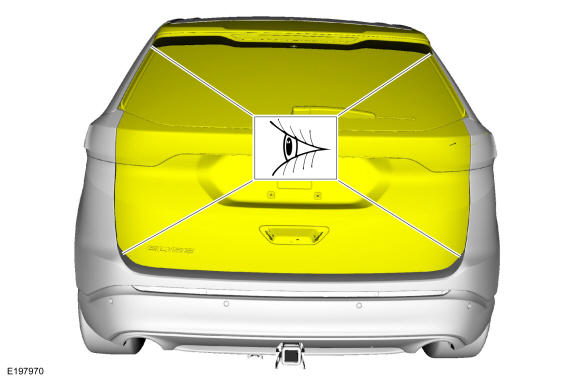

    Inspect the body-to-liftgate door dimensions. REFER to: Body and Frame .
GFD17594Courtesy of FORD MOTOR COMPANY

  1. 17.

    Install the removed components.

  1. 18.

    If equipped, carry out the power liftgate initialization. REFER to: Power Liftgate Initialization .
