Rear Gate Trunk Module (RGTM): Removal

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.

2.

If equipped, remove the DSP. REFER to: Audio Digital Signal Processing (DSP) Module .

3.

Remove the load space trim panel. REFER to: Loadspace Trim Panel .

4.

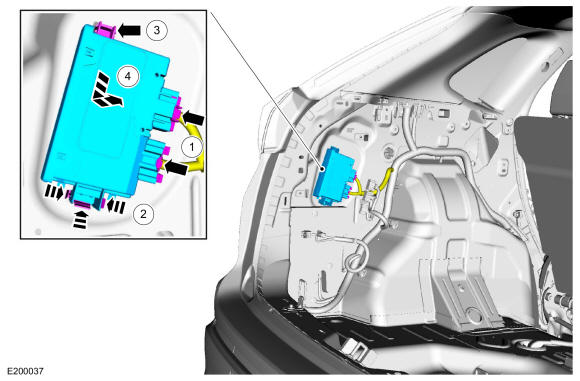

Remove the RGTM.
1. 1.

  Disconnect the electrical connectors.
1. 2.

  Release the retaining clips.
1. 3.

  Release the tab.
1. 4.

  Remove the RGTM.

GFD17644
