Front Brake Disc Shield: Removal

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the brake disc. Refer to: Brake Disc .

  1. 2.

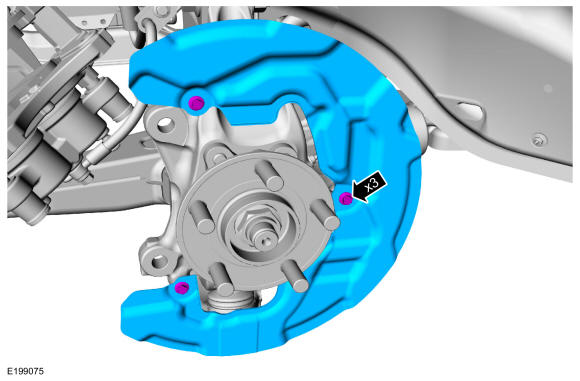

    Remove the bolts and the brake disc shield.

    Torque: 106 lb.in (12 Nm)

GFD18922Courtesy of FORD MOTOR COMPANY
