Wheel Cylinder: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |
NOTE:
Removal is not necessary to disassemble, inspect, hone or overhaul the rear wheel cylinder.

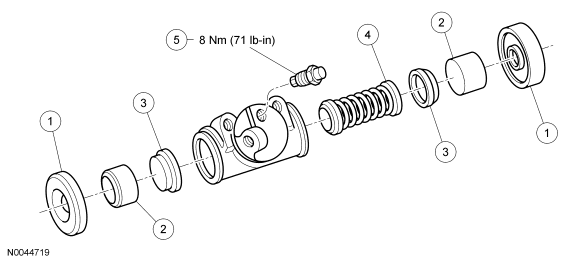

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wheel cylinder boots (part of 2261) |
| 2 | - | Wheel cylinder pistons (part of 2261) |
| 3 | - | Wheel cylinder cups (part of 2261) |
| 4 | - | Wheel cylinder expander (part of 2261) |
| 5 | - | Wheel cylinder bleeder screw (part of 2261) |
