Engine Support Insulators: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration |
Tool Name |
Tool Number |
|
|
3-Bar Engine Support Kit |
303-F072 |
|
|
Lifting Eyes |
303-D030 (D81L-6001-D) or equivalent |
Courtesy of FORD MOTOR CO.

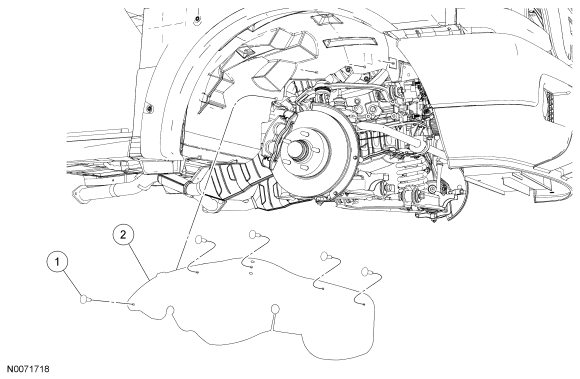

| Item |
Part Number |
Description |
| 1 |
- |
RH splash shield push pin (5 required |
| 2 |
- |
RH splash shield |
Courtesy of FORD MOTOR CO.

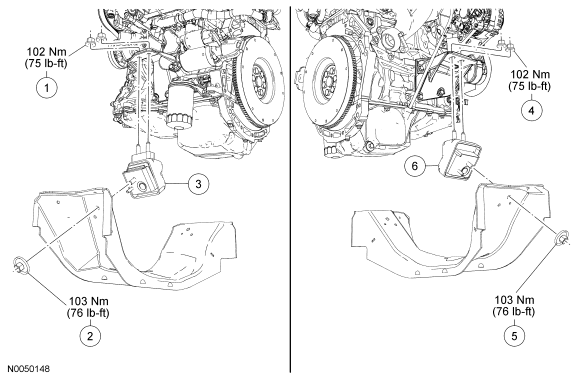

| Item |
Part Number |
Description |
| 1 |
N621945 |
LH engine support insulator-to-engine bracket nut |
| 2 |
W710657 |
LH engine support insulator-to-crossmember nut |
| 3 |
6B032 |
LH engine support insulator |
| 4 |
N621945 |
RH engine support insulator-to-engine bracket nut |
| 5 |
W710657 |
RH engine support insulator-to-crossmember nut |
| 6 |
6B038 |
RH engine support insulator |
