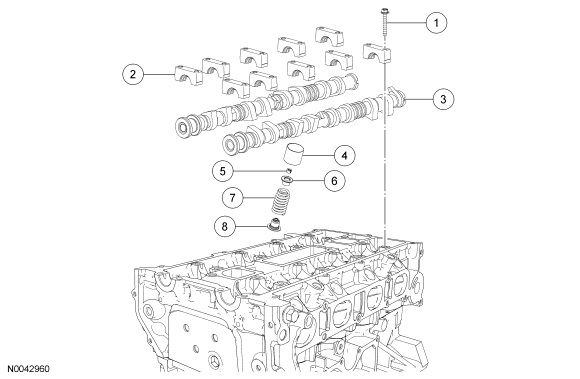

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706283 | Camshaft bearing cap bolt (20 required) |
| 2 | 6A284 | Camshaft bearing cap (10 required) |
| 3 | 6A267 | Camshaft (2 required) |
| 4 | 6500 | Valve tappet (16 required) |
| 5 | 6518 | Valve spring retainer key (16 required) |
| 6 | 6514 | Valve spring retainer (16 required) |
| 7 | 6513 | Valve spring (16 required) |
| 8 | 6517 | Valve seal (16 required) |
- For additional information, refer to the procedures in this article.
