Disassembly And Assembly: Halfshaft: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Constant Velocity Joint Boot Clamp | 205-343 (T95P-3514-A) |

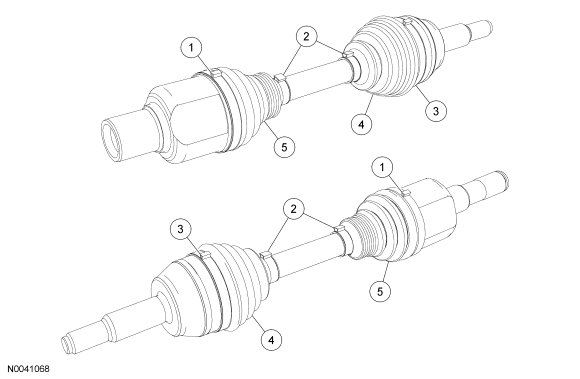

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Inboard boot inner clamps 90.5 (serviced in 3A331 kit only) |
| 2 | - | Intermediate shaft boot clamps (serviced in 3A331 kit only) |
| 3 | - | Outboard boot outer clamps 91 (serviced in 3A331 kit only) |
| 4 | - | Outboard CV joint boots (serviced in 3A331 kit only) |
| 5 | - | Inboard CV joint boots (serviced in 3A331 kit only) |
